NA-BZ8000D

$699.99

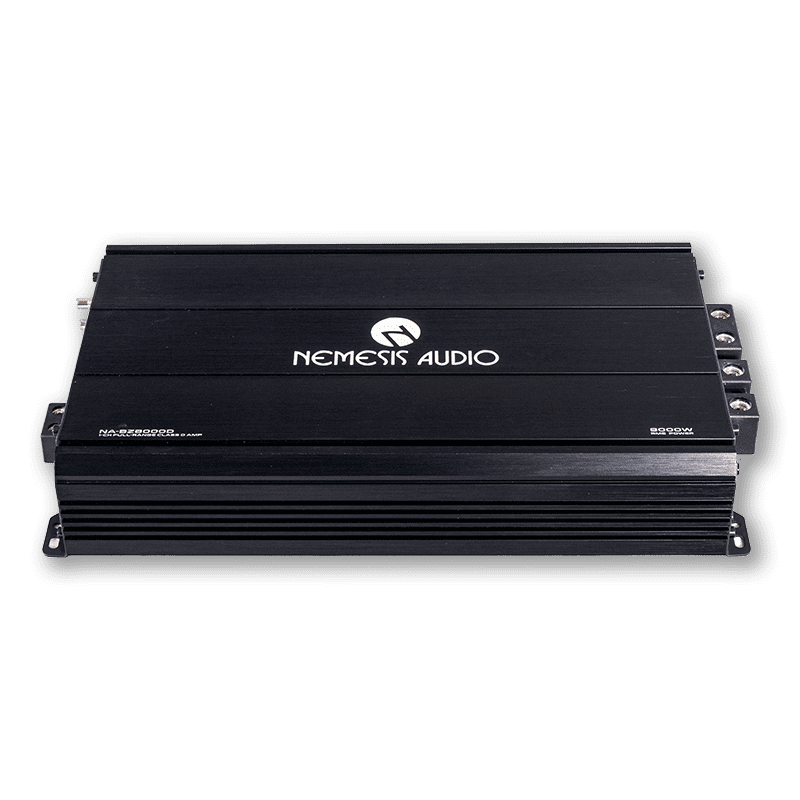

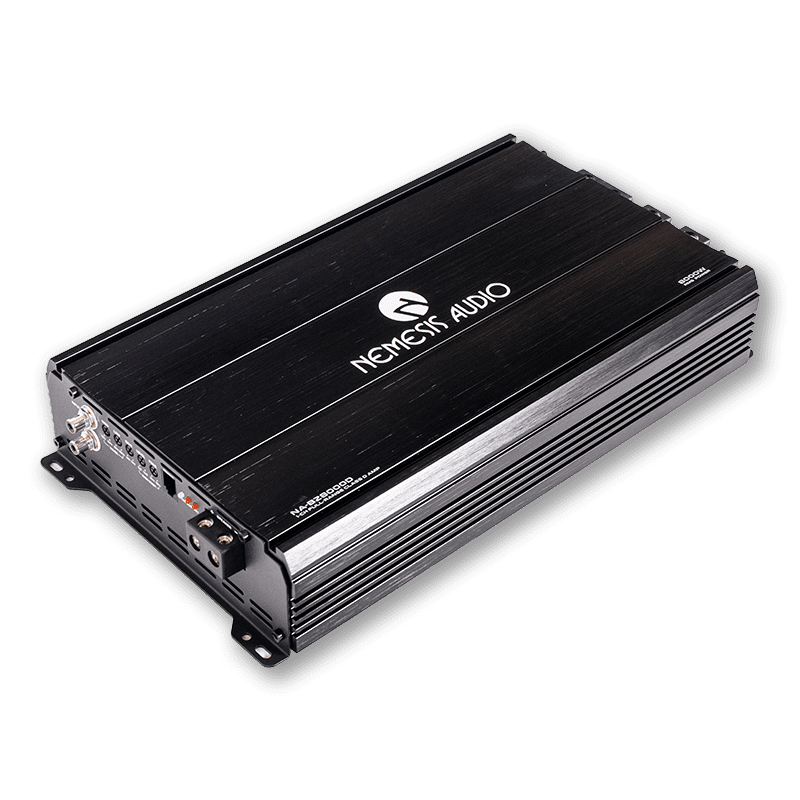

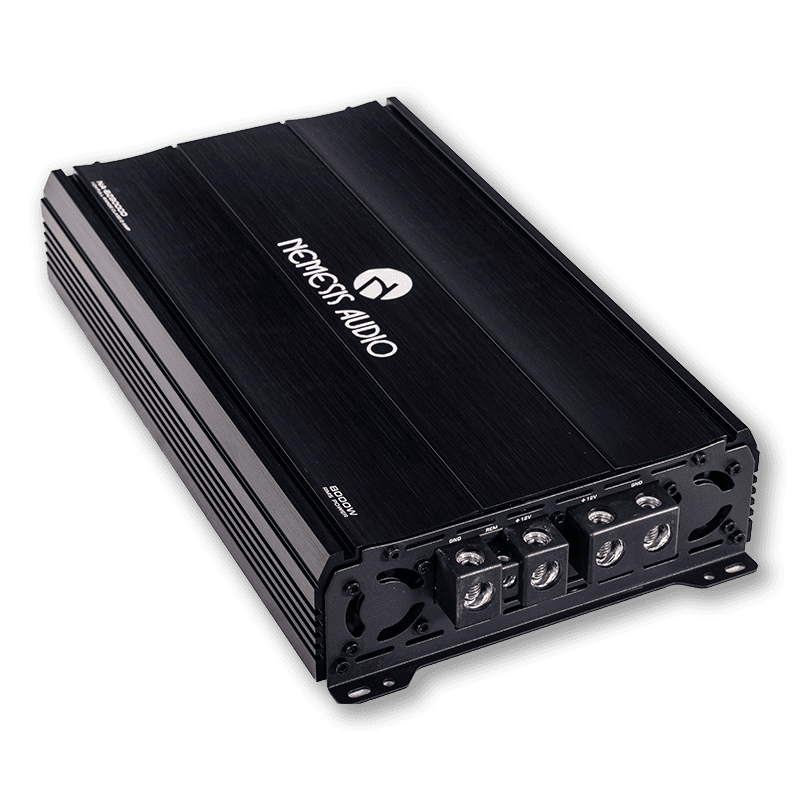

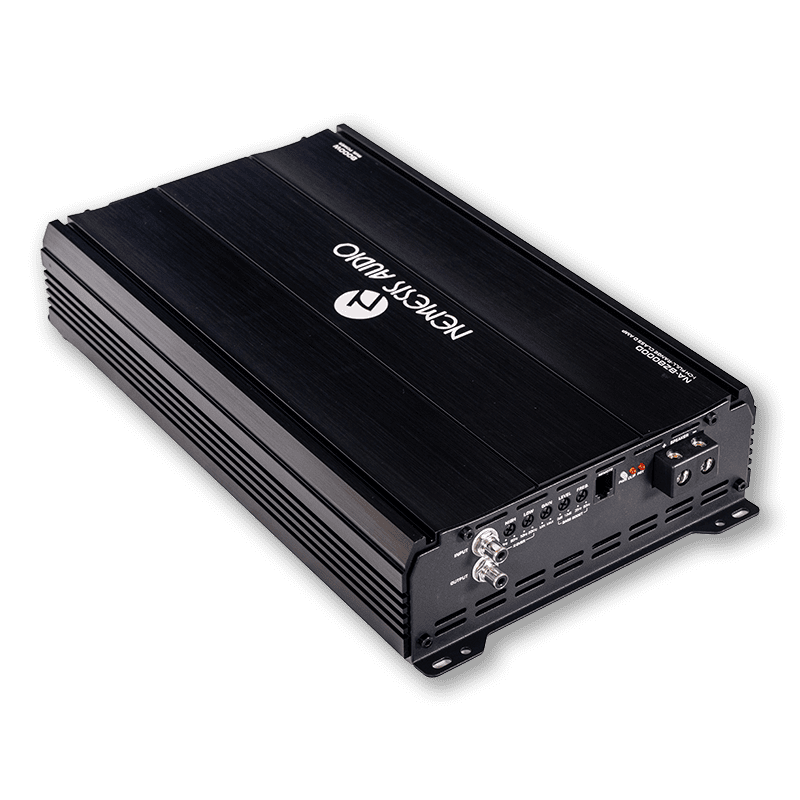

The Nemesis Audio NA-BZ8000D is a high-output, 1-channel Mono Full Range Class D amplifier designed for demanding car audio systems. With up to 8000W RMS at 1Ω, 1Ω-stable operation, adjustable filtering, bass boost, and a wide 10Hz–20kHz frequency response, it is built for powerful and flexible audio installations.

Description

Amplifier Owner's Manual

Key Specifications

Specification Details
Model NA-BZ8000D
Amplifier Type Mono Full Range Class D
Channels 1 Channel
Working Impedance 1Ω Stable
Input Sensitivity 0.25V – 4V
Frequency Response 10Hz – 20kHz
Signal-to-Noise Ratio 85dB
THD @ 4Ω 0.4%
Operating Voltage 9V – 16V
Fuse Rating 800A

RMS Power Output

Load RMS Power
4Ω 2,500W × 1
2Ω 4,800W × 1
1Ω 8,000W × 1

Crossover & Bass Controls

Control Range
High-Pass Filter N/A
Low-Pass Filter 50Hz – 20kHz
Subsonic Filter 10Hz – 80Hz
Bass Boost 0dB – 12dB

Product Highlights

  • 8000W RMS @ 1Ω
  • Mono Full Range Class D design
  • 1Ω stable operation
  • Wide 10Hz–20kHz frequency response
  • Adjustable Low-Pass Filter
  • Adjustable Subsonic Filter
  • 0–12dB Bass Boost
  • 0.25V–4V input sensitivity
  • 800A fuse rating
  • 9V–16V operating voltage

Dimensions

13.74″ × 8.35″ × 2.56″ (L × W × H)

Additional information
Channels1 Channel
Amplifier ClassClass D
RMS Power @ 4 Ohms1 x 2500W
RMS Power @ 2 Ohms1 x 4800W
RMS Power @ 1 Ohm1 x 8000W
Working Impedance1 Ohm Stable
Frequency Response10Hz to 20kHz
Input Sensitivity0.25V to 4V
Operating Voltage9V to 16V
Fuse Rating800A
Dimensions13.74 x 8.35 x 2.56 in
