NA-BZ5000D

$499.99

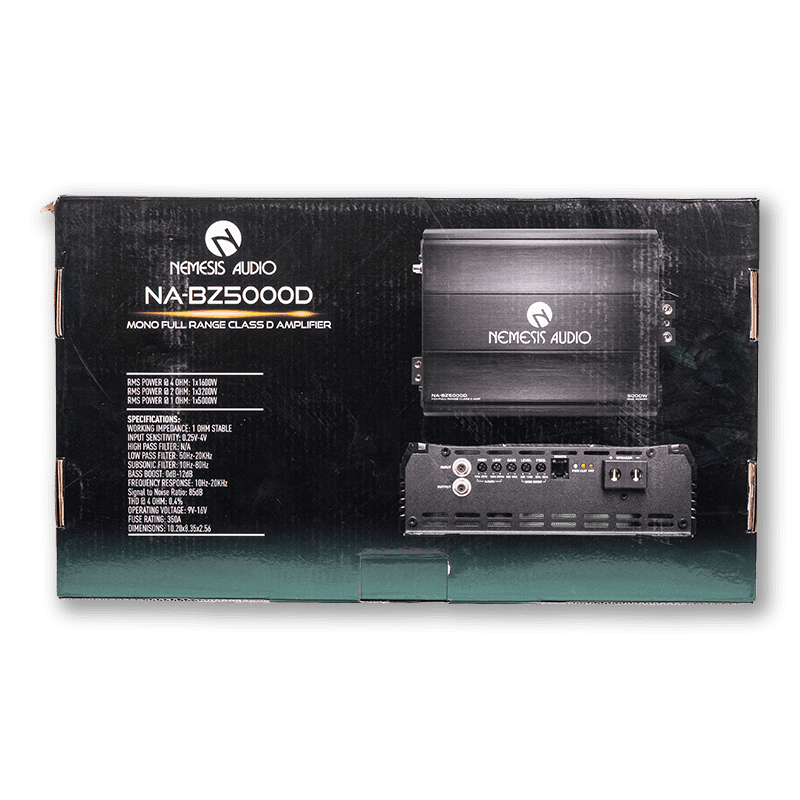

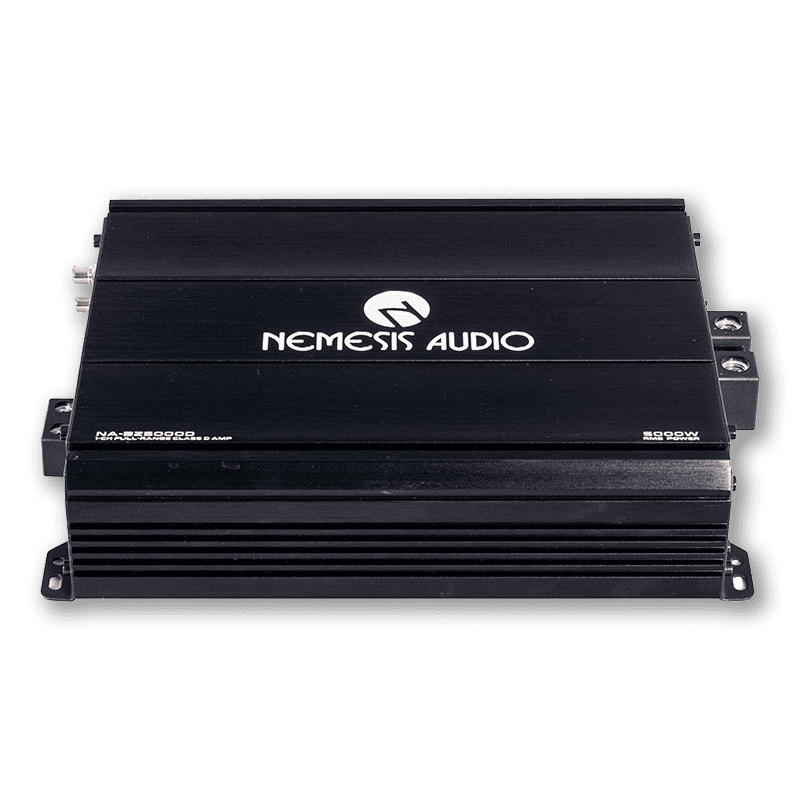

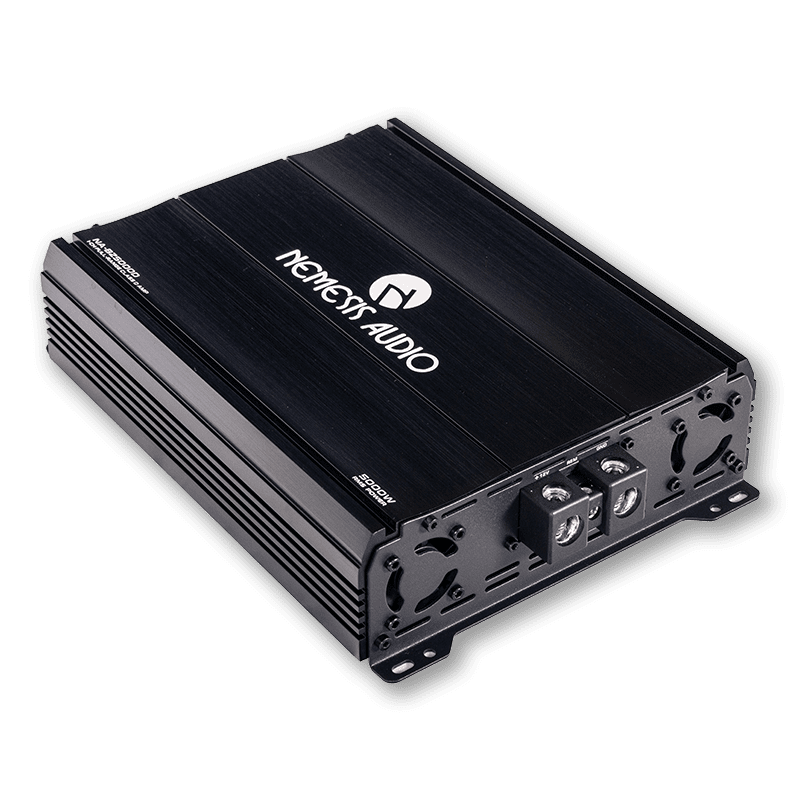

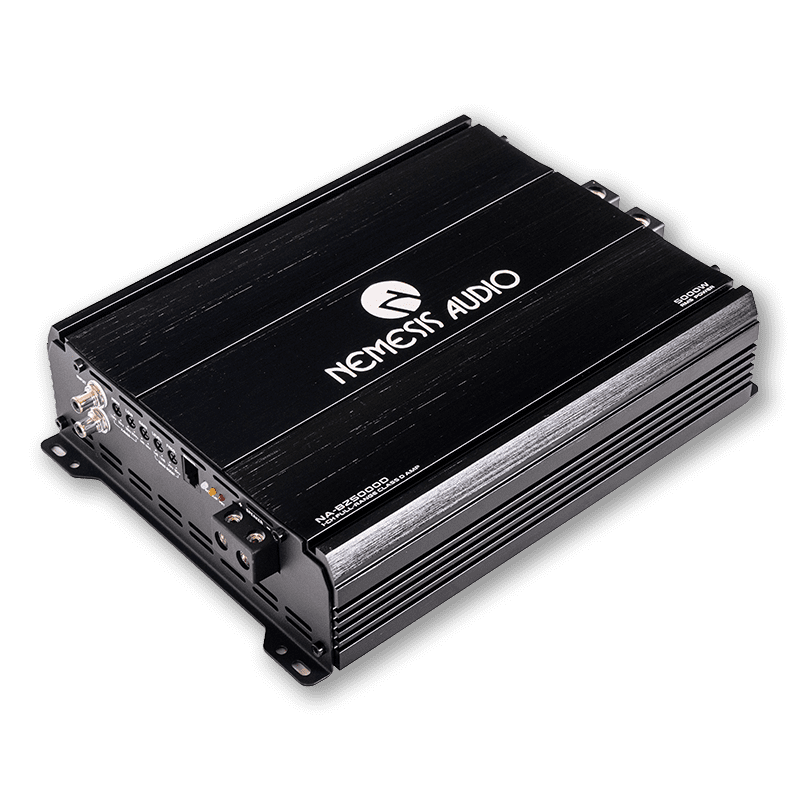

The Nemesis Audio NA-BZ5000D is a high-power Mono Full Range Class D amplifier built for demanding car audio systems. With 5,000W RMS at 1Ω, 1Ω-stable operation, full-range frequency response, adjustable low-pass and subsonic filtering, and bass boost control, it is designed for high-output audio installations. The specifications on the product packaging are also confirmed by Nemesis Audio’s official listing.

Description

Amplifier Owner's Manual

Key Specifications

Specification Details
Model NA-BZ5000D
Amplifier Type Mono Full Range Class D
Channels 1 Channel
Working Impedance 1Ω Stable
Input Sensitivity 0.25V – 4V
Frequency Response 10Hz – 20kHz
Signal-to-Noise Ratio 85dB
THD @ 4Ω 0.4%
Operating Voltage 9V – 16V

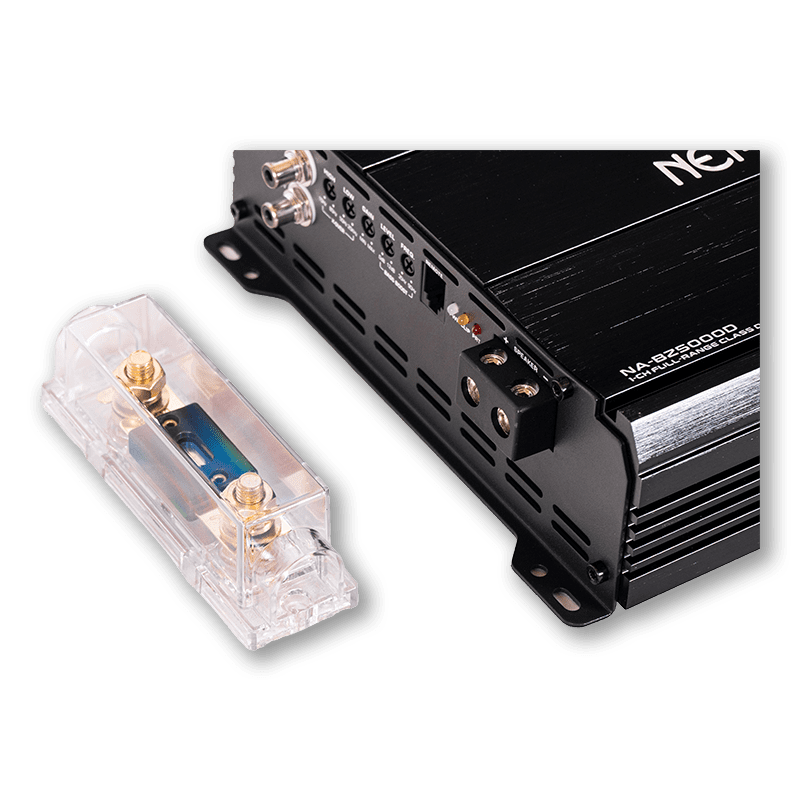

Fuse Rating 350A

Power Output

Load RMS Power Output
4Ω 1,600W × 1
2Ω 3,200W × 1
1Ω 5,000W × 1

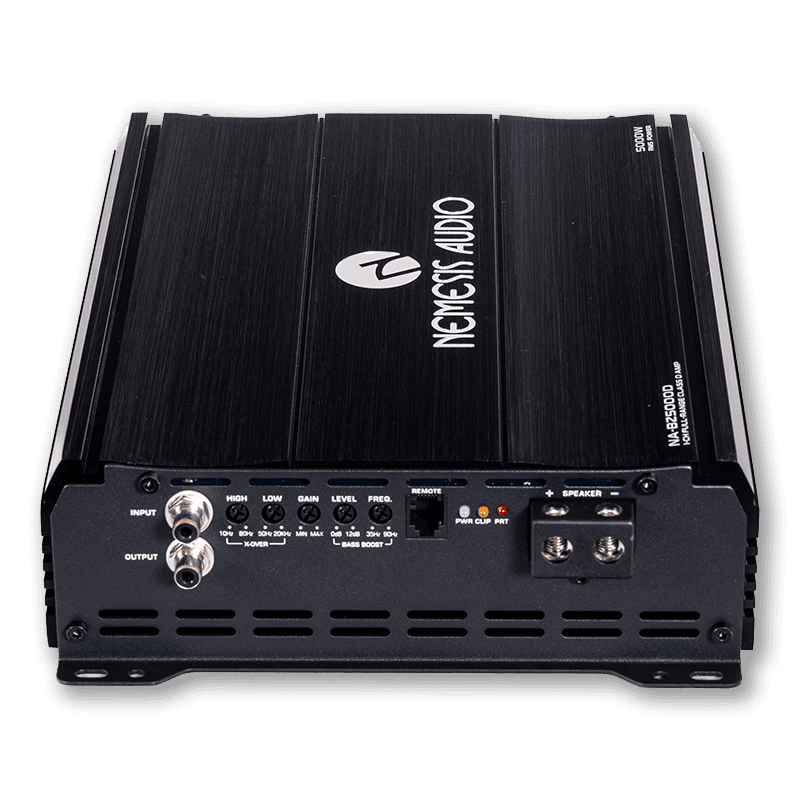

Crossover & Audio Controls

Feature Specification
Low Pass Filter (LPF) 50Hz – 20kHz
Subsonic Filter 10Hz – 80Hz
Bass Boost 0 – 12dB
Input Sensitivity 0.25V – 4V
Frequency Response 10Hz – 20kHz

Product Highlights

  • 5,000W RMS @ 1Ω
  • 1Ω stable operation
  • Mono Full Range Class D design
  • 3,200W RMS @ 2Ω
  • 1,600W RMS @ 4Ω
  • Adjustable 50Hz–20kHz LPF
  • Adjustable 10Hz–80Hz subsonic filter
  • 0–12dB bass boost
  • 85dB signal-to-noise ratio
  • 0.4% THD @ 4Ω
  • 9V–16V operating voltage
  • 350A fuse rating
  • Full-range 10Hz–20kHz response Nemesis Audio

Dimensions

10.20″ × 8.35″ × 2.56″ (L × W × H)

Additional information
Channels1 Channel
Amplifier ClassClass D
RMS Power @ 4 Ohms1 x 1600W
RMS Power @ 2 Ohms1 x 3200W
RMS Power @ 1 Ohm1 x 5000W
Working Impedance1 Ohm Stable
Frequency Response10Hz to 20kHz
Input Sensitivity0.25V to 4V
Operating Voltage9V to 16V
Fuse Rating350A
Dimensions10.20 x 8.35 x 2.56 in
