NA-1600X4D
$249.99

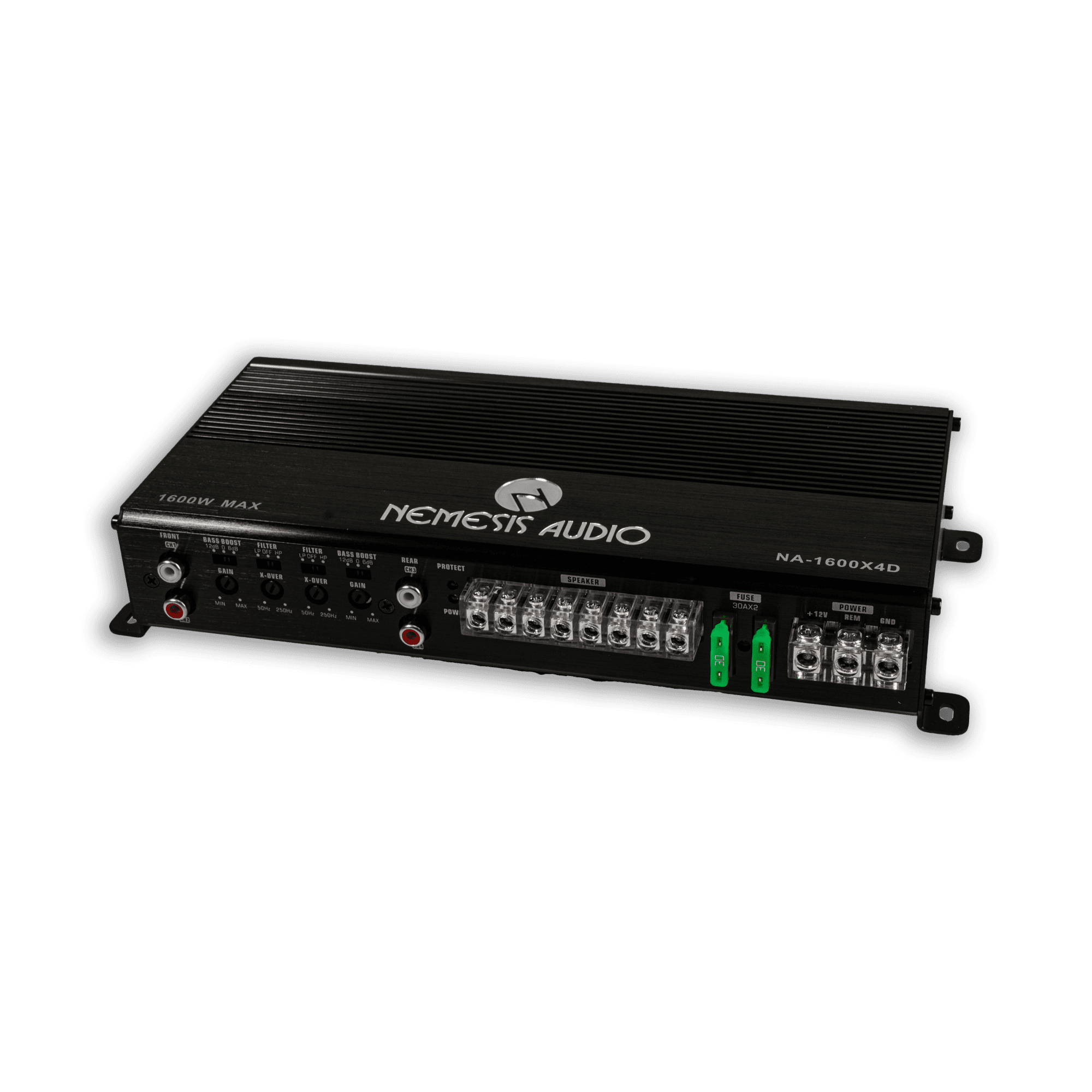

The Nemesis Audio NA-1600X4D is a high-output 4-channel Class D amplifier designed for powerful multi-speaker car audio systems. It delivers up to 1600W MAX, with 4 × 200W RMS at 2Ω and 4 × 100W RMS at 4Ω. The amplifier also supports bridged operation, allowing up to 500W × 2 channels at 4Ω.
Key Specifications
| Specification | Details |
|---|---|
| Model | NA-1600X4D |
| Amplifier Type | Class D |
| Number of Channels | 4 Channel |
| Maximum Power | 1600W MAX |
| RMS Power @ 4Ω | 100W × 4CH |
| MAX Power @ 4Ω | 200W × 4CH |
| RMS Power @ 2Ω | 200W × 4CH |
| MAX Power @ 2Ω | 400W × 4CH |
| Bridged RMS @ 4Ω | 250W × 2CH |
| Bridged MAX @ 4Ω | 500W × 2CH |
| Frequency Response | 20Hz–20kHz |
| Input Level | 0.2V–6V |
| Signal-to-Noise Ratio | >80dB |
| THD @ 4Ω, 30% Rated Power | <0.5% |
| Minimum Load | 2Ω |
| Current Draw | 76A |
Power Output
| Configuration | RMS Power | MAX Power |
|---|---|---|
| 4Ω | 100W × 4CH | 200W × 4CH |
| 2Ω | 200W × 4CH | 400W × 4CH |
| 4Ω Bridged | 250W × 2CH | 500W × 2CH |
Crossover & Bass Controls
| Feature | Specification |
|---|---|
| LPF | 50Hz–250Hz |
| HPF | 50Hz–250Hz |
| Bass Boost Level | 0–12dB |
| Input Level | 0.2V–6V |
| Minimum Load | 2Ω |
Protection & Construction
| Feature | Details |
|---|---|
| Short Circuit Test (Max. Power) | PASS |
| Overload Protection System | YES |
| Overheat Protection Temperature | 80°C / 176°F |
| Components & PCB | SMT & Double Side Board |
| Current Draw | 76A |
Product Highlights
- 1600W MAX 4-channel Class D amplifier
- 100W × 4 RMS @ 4Ω
- 200W × 4 RMS @ 2Ω
- 250W × 2 RMS bridged @ 4Ω
- 500W × 2 MAX bridged @ 4Ω
- 20Hz–20kHz frequency response
- Adjustable 50Hz–250Hz HPF and LPF
- 0–12dB bass boost
- 0.2V–6V adjustable input level
-
80dB signal-to-noise ratio
- <0.5% THD
- 2Ω minimum load
- Overload and overheat protection
- SMT and double-sided PCB construction
Dimensions
253 × 121 × 44mm
