FR-M1200.4D
$349.99

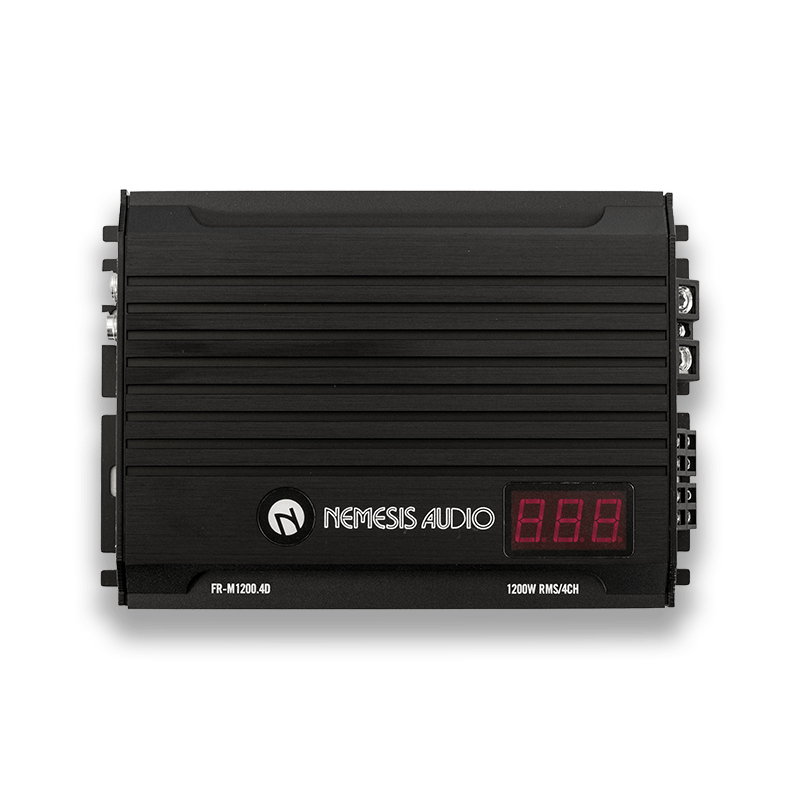

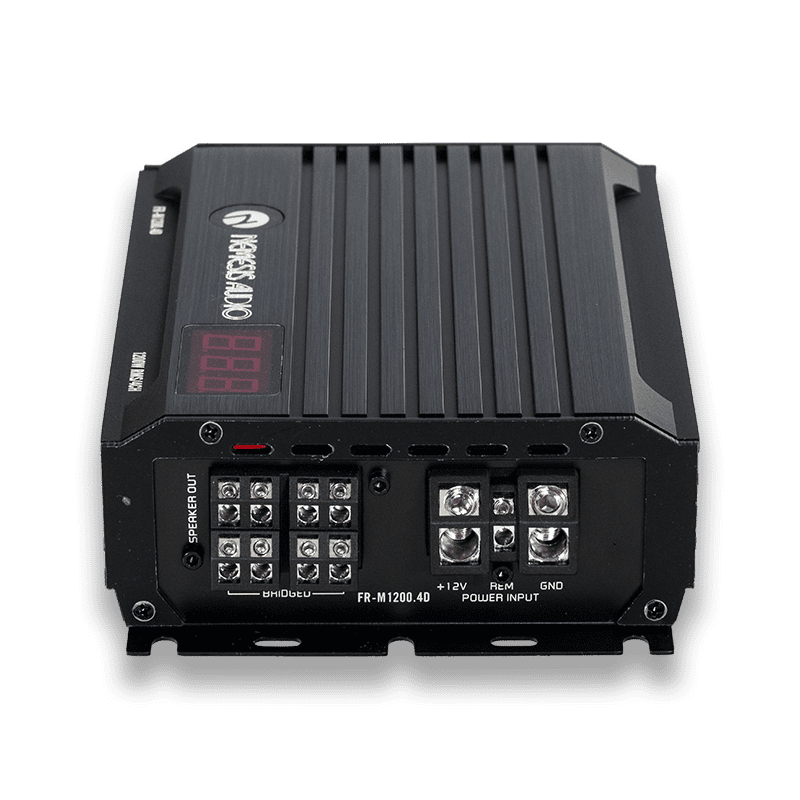

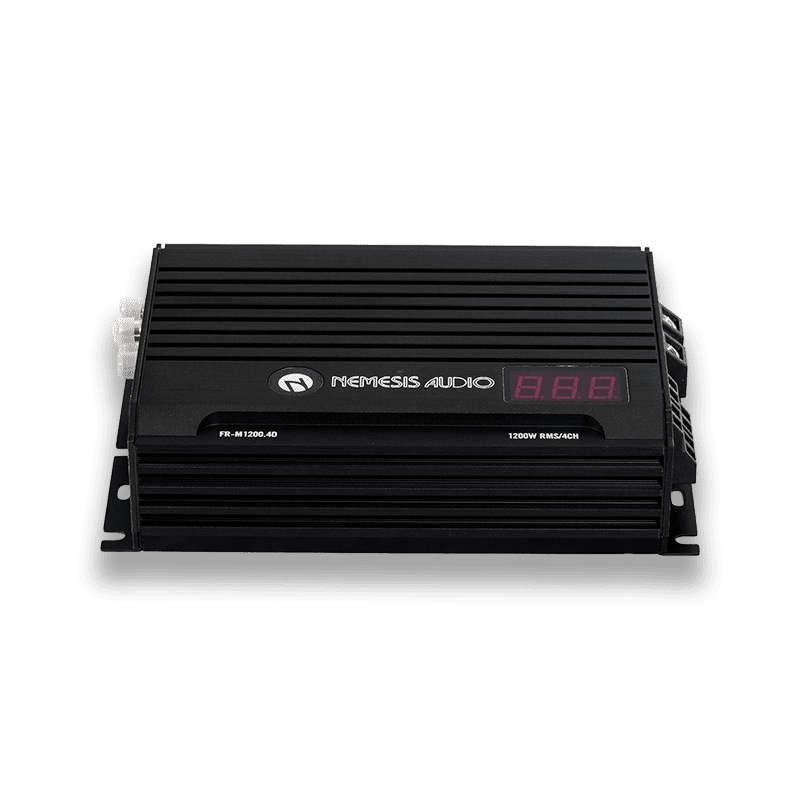

The Nemesis Audio FR-M1200.4D is a compact, high-performance 4-channel Full-Range Class D amplifier designed to deliver strong power while maintaining a space-saving footprint. With 300W RMS × 4 channels at 2Ω and 600W × 2 bridged at 4Ω, it offers flexible configuration options for high-output speaker systems. The manufacturer confirms the same core power ratings and compact dimensions.
Amplifier Owner's Manual
Key Specifications
| Specification | Details |
|---|---|
| Model | FR-M1200.4D |
| Amplifier Type | Full-Range Class D |
| Channels | 4 Channel |
| Rated Output @ 2Ω | 300W × 4 RMS |
| Rated Output @ 4Ω | 180W × 4 RMS |
| Bridged Output @ 4Ω | 600W × 2 RMS |
| Test Voltage | 14.4V |
| Rated Distortion | <1% THD |
| Frequency Response | 10Hz – 30kHz |
| LPF Crossover Range | 40Hz – 500Hz |
| Input Sensitivity | 0.36V – 7.5V |
| Signal-to-Noise Ratio | >90dB |
| Total Harmonic Distortion | <0.2% |
Power Output
| Configuration | RMS Power |
|---|---|
| 4Ω | 180W × 4 CH |
| 2Ω | 300W × 4 CH |
| 4Ω Bridged | 600W × 2 CH |
The manufacturer lists the FR-M1200.4D at 300W × 4 RMS @ 2Ω, 180W × 4 RMS @ 4Ω, and 600W × 2 bridged @ 4Ω.
Crossover & Audio Controls
The amplifier provides independent front and rear channel controls for flexible system tuning.
| Feature | Specification |
|---|---|
| Front Crossover | HPF / FULL / LPF |
| Rear Crossover | HPF / FULL / LPF |
| Crossover Frequency | 40Hz – 500Hz |
| Gain Control | MIN – MAX |
| Input Mode | 2CH / 4CH |
| Input Sensitivity | 0.36V – 7.5V |
| Frequency Response | 10Hz – 30kHz |
Product Highlights
- 4-Channel Full-Range Class D amplifier
- 1200W RMS class power rating
- 300W × 4 RMS @ 2Ω
- 180W × 4 RMS @ 4Ω
- 600W × 2 RMS bridged @ 4Ω
- Wide 10Hz–30kHz frequency response
- Adjustable 40Hz–500Hz crossover
- Front and rear independent crossover controls
- 2CH / 4CH input mode
- >90dB signal-to-noise ratio
- <0.2% THD
- Compact chassis with integrated digital voltmeter display
- Suitable for high-output multi-speaker installations
Dimensions
209 × 140 × 55mm
8.23 × 5.51 × 2.17 inches
(L × W × H)
