NA-X5000.1D
$699.99
The Nemesis Audio NA-X5000.1D is a high-output 1-channel Class D monoblock amplifier built for powerful subwoofer and competition-level bass systems. The supplied packaging identifies it as a 5,000W RMS amplifier and includes a bass knob with digital voltmeter. Current product listings specify up to 5,270W RMS at 1Ω and 10,000W maximum power.
Amplifier Owner's Manual
Key Specifications
| Specification | Details |
|---|---|
| Model | NA-X5000.1D |
| Series | X-Series |
| Amplifier Type | Class D Monoblock |
| Channels | 1 Channel |
| Maximum Power | 10,000W |
| RMS Power @ 1Ω | 5,270W × 1 |
| RMS Power @ 2Ω | 3,240W × 1 |
| RMS Power @ 4Ω | 1,760W × 1 |
| Frequency Response | 10Hz–180Hz |
| Input Sensitivity | 0.4V–4V |
| THD | <0.5% |
| Working Impedance | 1Ω Stable |
Power Output
| Load | RMS Power |
|---|---|
| 1Ω | 5,270W × 1 |
| 2Ω | 3,240W × 1 |
| 4Ω | 1,760W × 1 |
Current authorized-retailer specifications list these detailed RMS ratings, while the supplied box prominently identifies the amplifier as 5,000W RMS. Online Car Stereo

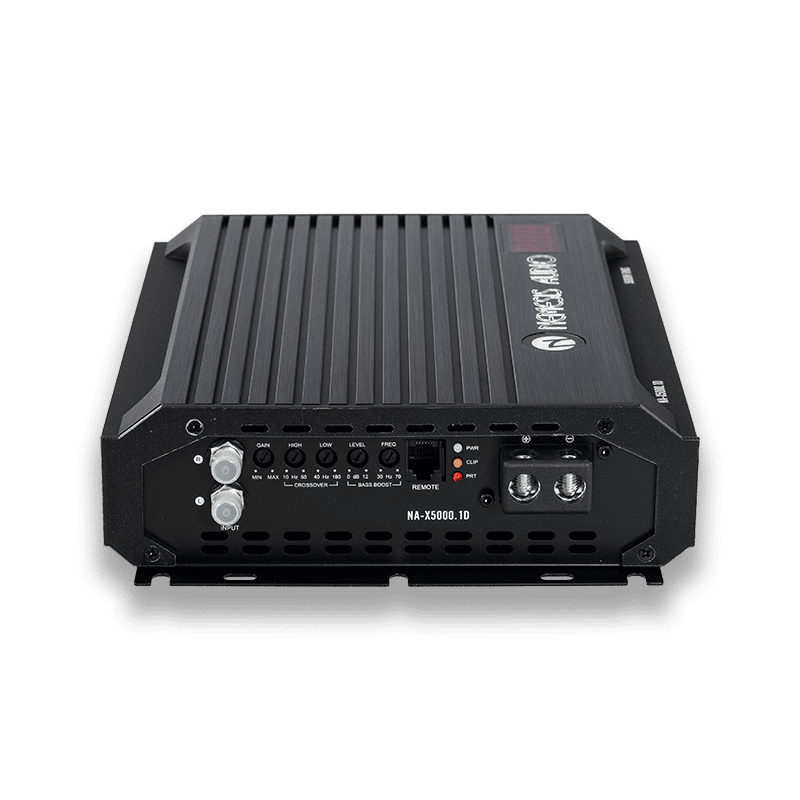

Crossover & Bass Controls
| Control | Specification |
|---|---|
| Low Pass Filter (LPF) | 40Hz–180Hz |
| Input Sensitivity | 0.4V–4V |
| Frequency Response | 10Hz–180Hz |
| Bass Control | Remote Bass Knob |
| Digital Monitoring | Built-in Digital Voltmeter |
Product Highlights
- 5,000W RMS class rating shown on the supplied packaging
- Up to 5,270W RMS @ 1Ω according to current detailed specifications
- 10,000W maximum power
- 1-channel Class D monoblock design
- 1Ω stable
- 10Hz–180Hz frequency response
- 40Hz–180Hz adjustable LPF
- 0.4V–4V input sensitivity
- <0.5% THD
- Remote bass knob with digital voltmeter included
- X-Series heavy-duty heatsink design
- Designed for high-output and competition-level bass systems Online Car Stereo
Dimensions
10.12″ × 7.87″ × 2.28″
257 × 200 × 58mm (L × W × H)
