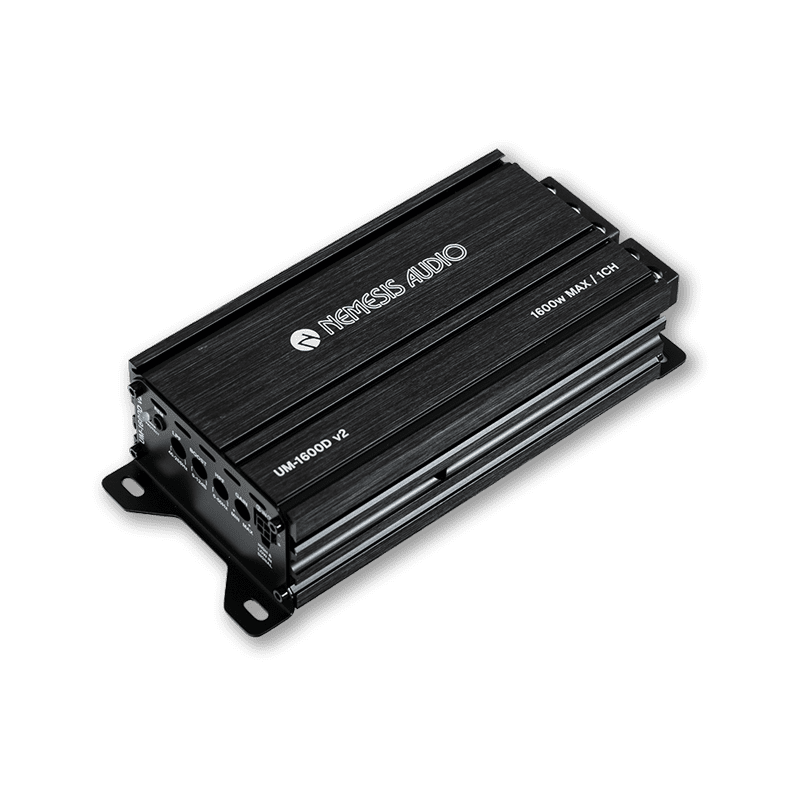

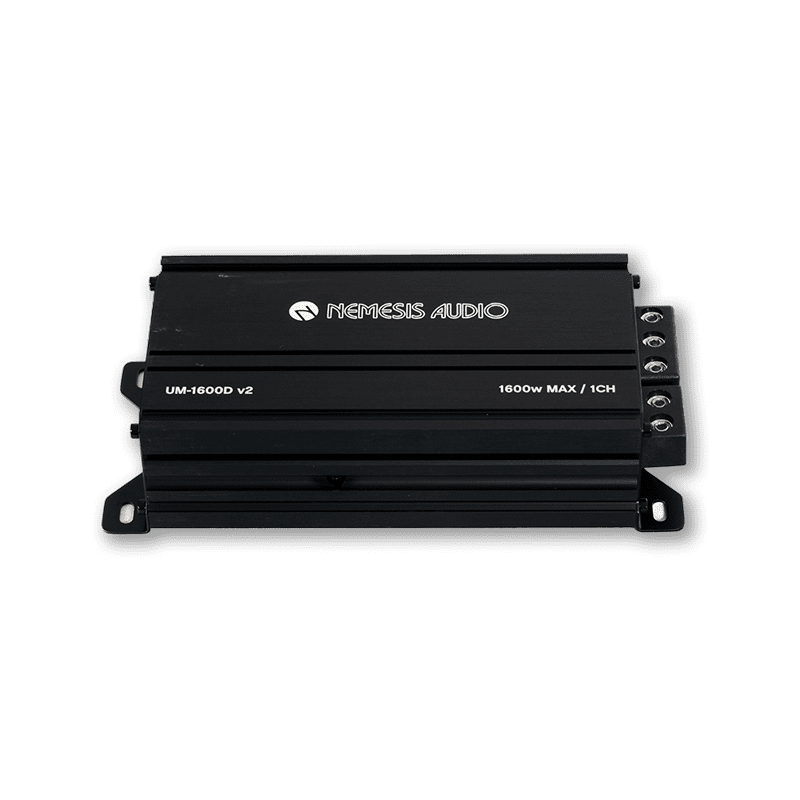

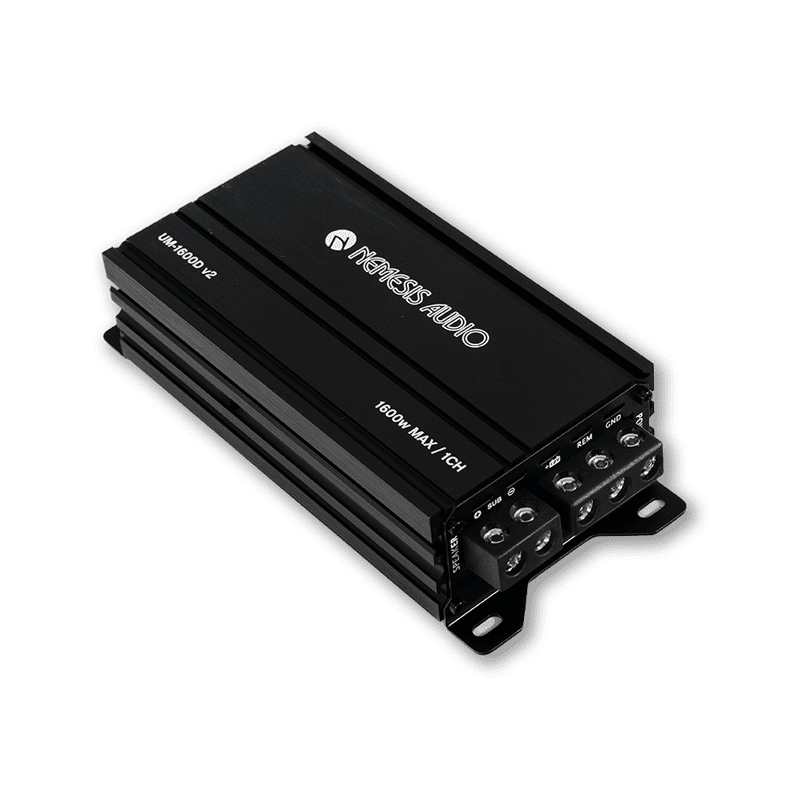

Nemesis Audio UM-1600D V2 800W RMS Slim Monoblock Amplifier
$199.99
The Nemesis Audio UM-1600D V2 is a compact, high-output monoblock amplifier designed to deliver powerful bass performance while fitting into space-limited installations. Its Class D design combines high efficiency with a slim, ultra-micro chassis, making it suitable for systems where installation space is limited. The V2 model delivers 800W RMS at 1 Ohm and 1600W maximum power.
Key Specifications
| Specification | Details |
|---|---|
| Model | UM-1600D V2 |
| Amplifier Type | Class D Digital |
| Channels | 1 Channel / Monoblock |
| Maximum Power | 1600W Max |
| RMS Power @ 1 Ohm | 800W RMS |
| Frequency Response | 10Hz – 250Hz |
| Efficiency | >85% |
| Minimum Supply Voltage | 9V |
| Maximum Supply Voltage | 16V |
| Design | Ultra-Micro / Slim |
| Remote Bass Knob | Included |
The manufacturer lists the UM-1600D V2 as an 800W RMS, 1-channel Class D amplifier, with variable gain, low-pass filtering, and subsonic filtering. Nemesis Audio

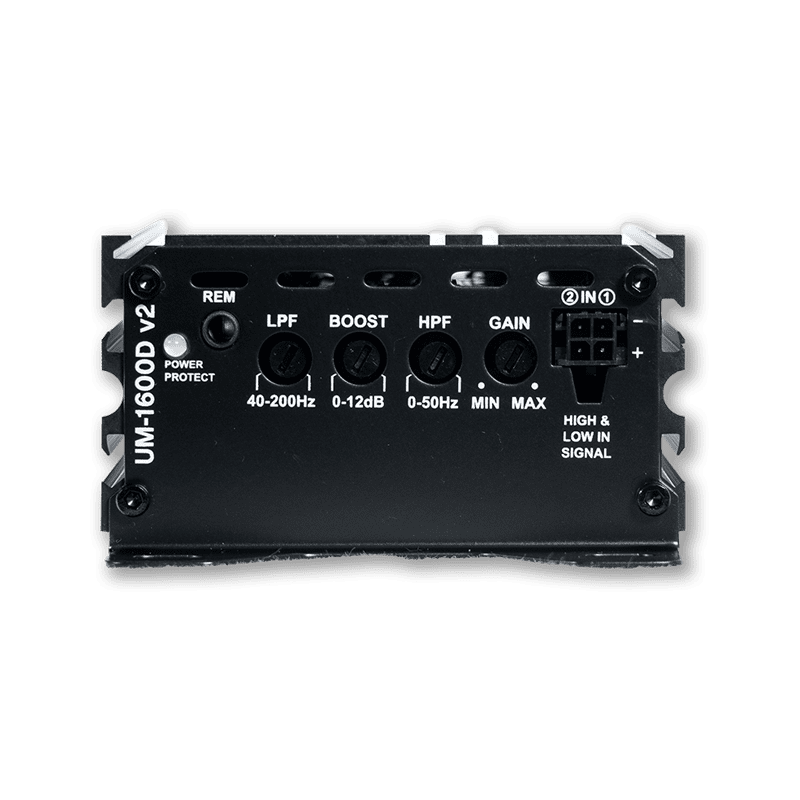

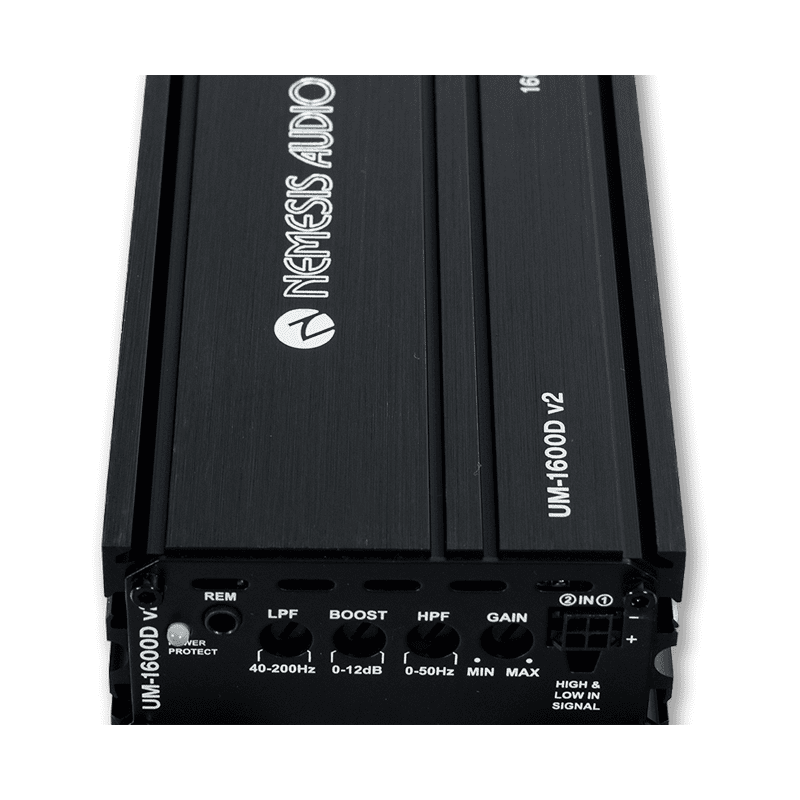

Crossover & Controls
- Low Pass Filter (LPF): Variable
- Subsonic / High Pass Filter: Variable
- Gain: Variable

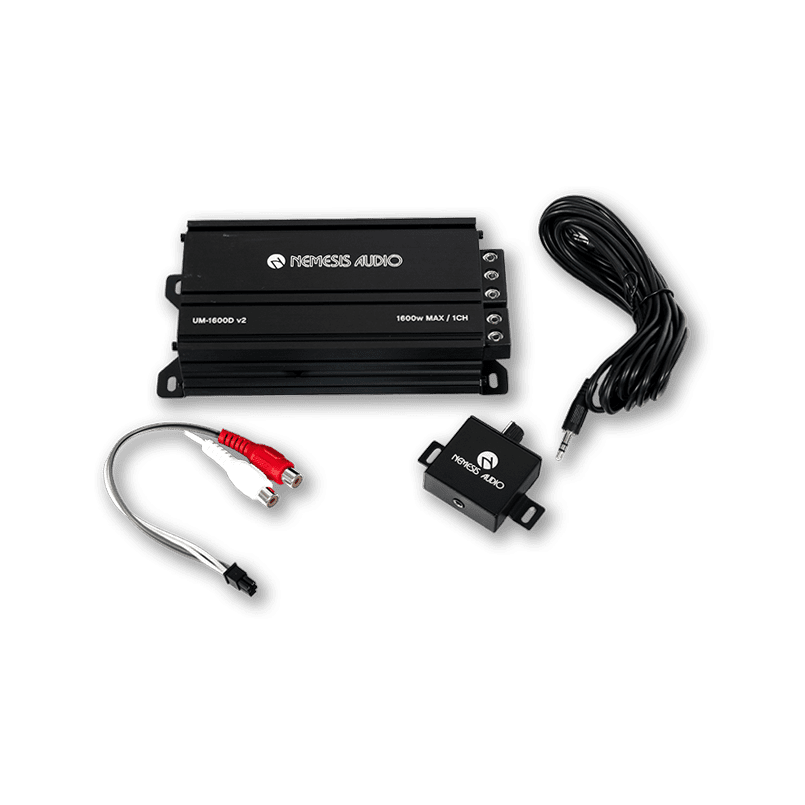

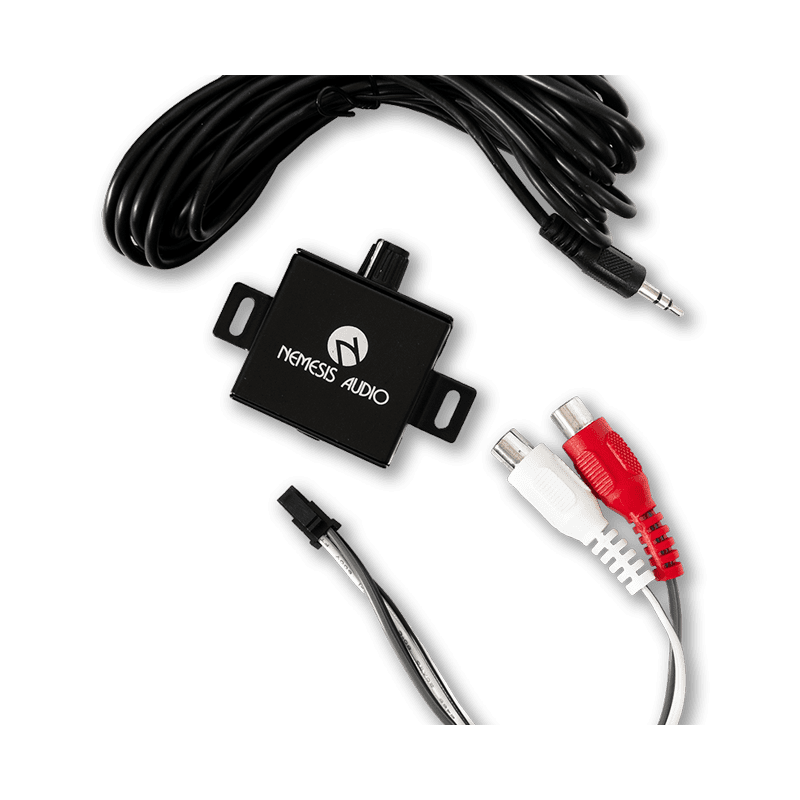

- Bass Control: Remote bass knob included
- Designed for fine-tuning bass response to suit the enclosure and system
Dimensions
The dimensions shown on the product packaging are:
- Length: 172 mm / 6.77″
- Mounting/Inner Length: 142 mm / 5.59″
- Height: approximately 73 mm / 2.87″
Product Highlights
- 1600W Maximum Power
- 800W RMS @ 1 Ohm
- 1-channel monoblock design
- Class D digital circuitry
- Ultra-micro, slim chassis
- 10Hz–250Hz frequency response
- >85% efficiency
- Variable gain and crossover controls
- Remote bass knob included
- Designed for space-limited installations such as under-seat or compact vehicle installations
