SOAK-3800X5D
$599.99

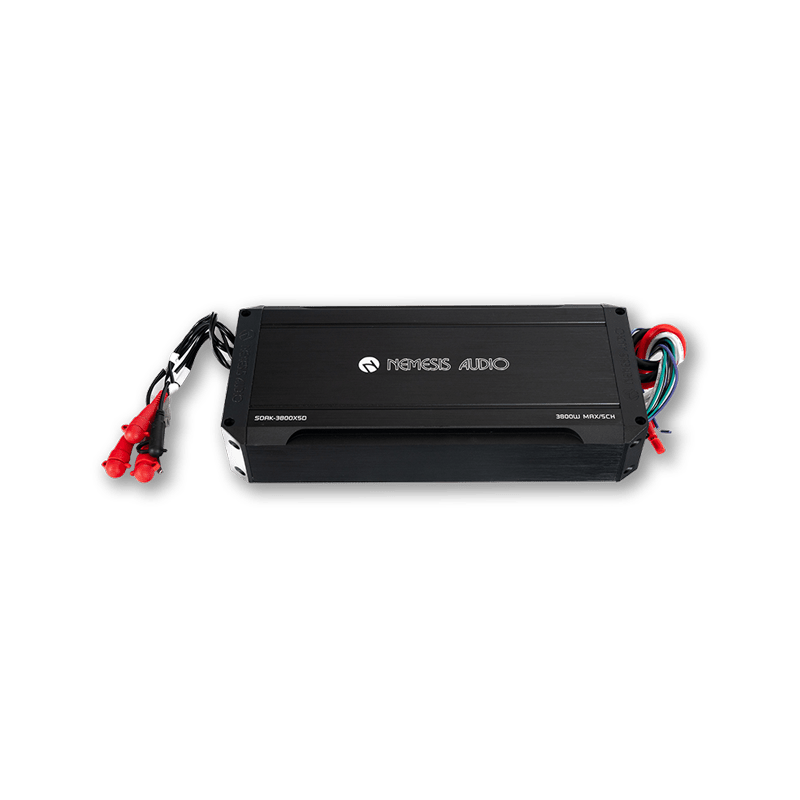

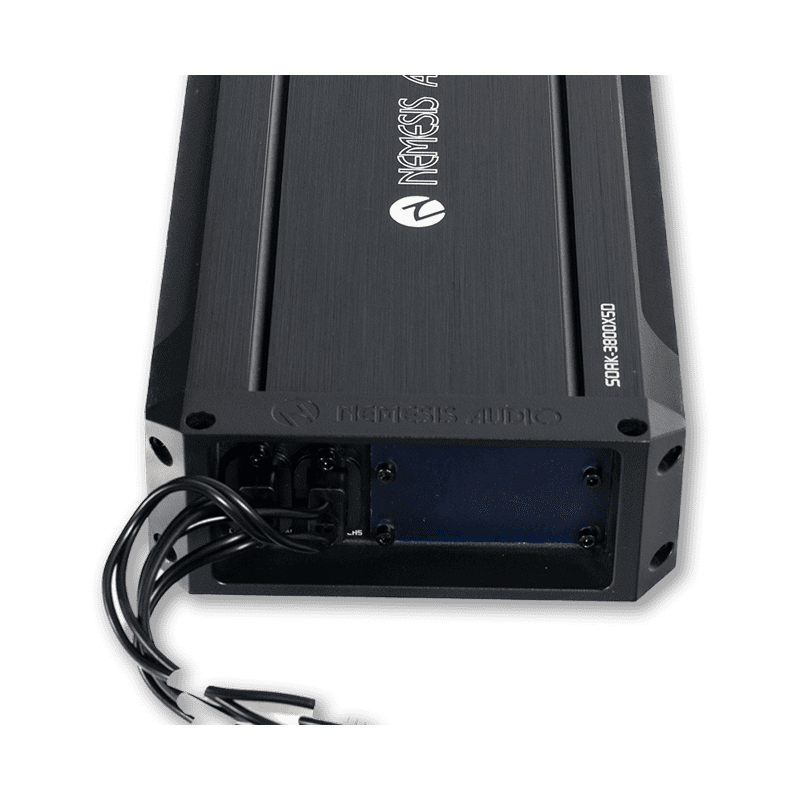

The Nemesis Audio SOAK-3800X5D is a high-output 3800W Max Waterproof 5-Channel Marine Amplifier. Designed as a complete “one-amp solution,” this Class D powerhouse features four channels for your speakers and a dedicated high-current fifth channel for your subwoofer, all protected by an IP67 waterproof rating.
Amplifier Owner's Manual
Features
– IRS (International Rectifier) Class-D topology.
– Wireless streaming capabilities (SOAK-1500X4B).
– Compact size for easy installation in many applications.
– Variable full crossover filter: LPF / FULL / HPF.
– Surface-mount component technology.
– Audio precision quality control verification.
– Stable and reliable four-layer PCB trace layout.
– Power and protection LED status indicators.
– Short-circuit, thermal, DC offset, overload, and voltage protection.
– Bass knob controller, except for SOAK-1500X4B, SOAK-2200X4D, SOAK-4500X4D, and SOAK-4000X6D.
– High-gloss CNC-machined engraved Nemesis Audio logo.
Specifications
| MODEL NO. | SOAK-3800X5D |
|---|---|
| Circuit Topology | Full Range Class-D |
| RMS/MAX POWER OUTPUT AT 1 Ohm (14.4V, <1% T.H.D) | 1020W / 2040W (CH5) |
| RMS/MAX POWER OUTPUT AT 2 Ohm (14.4V, <1% T.H.D) | 250W × 4CH / 500W × 4CH +670W / 1340W (CH5) |
| RMS/MAX POWER OUTPUT AT 4 Ohm (14.4V, <1% T.H.D) | 150W × 4CH / 300W × 4CH +420W / 840W (CH5) |
| RMS/MAX POWER OUTPUT AT 4 Ohm BRIDGED (14.4V, <1% T.H.D) | 500W × 2CH 1000W × 2CH |
| RMS POWER OUTPUT AT 2 Ω BRIDGED | N/A |
| TOTAL HARMONIC DISTORTION | <0.2% |
| S/N RATIO REF 1W AT 4Ω | >90dB |
| GAIN RANGE | 0.36–7.3V |
| PER OCTAVE SLOPES | 12dB |
| COOLING FAN | N/A |
| OPERATION FREQUENCY RANGE | 20–30KHz 10–300Hz |
| CROSSOVER RANGE | 20–400Hz |
| INPUT MODE | 4CH/5CH |
| BASS BOOST | 0–12dB |

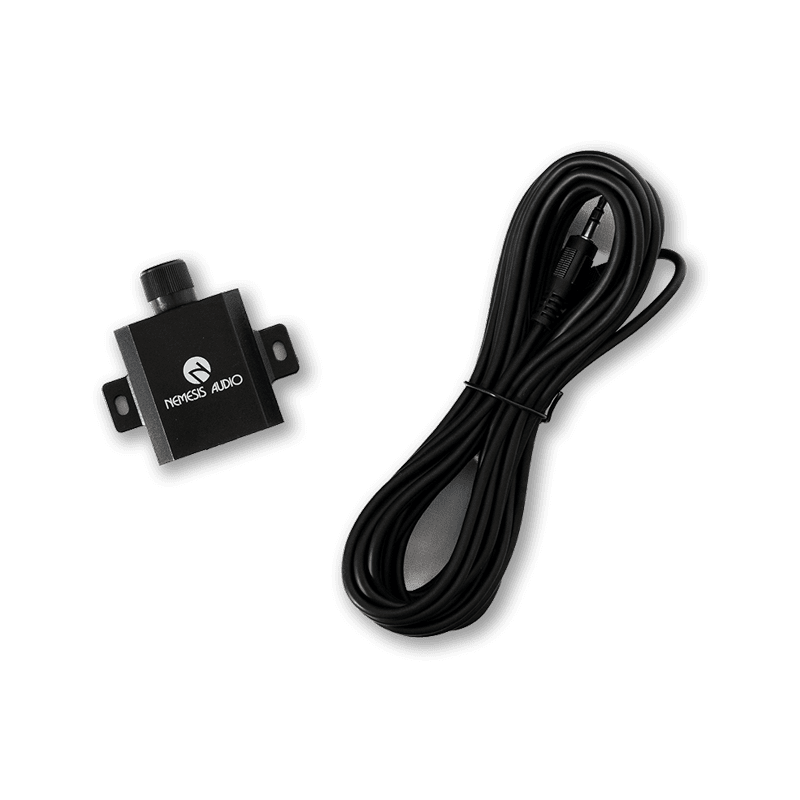

| BASS KNOB | INCLUDED |
| DIMENSIONS (MM) | 304 × 140 × 54 |
| DIMENSIONS (IN) | 11.97 × 5.51 × 2.13 |
| Channels | 5 |
|---|
