SOAK-2200X4D
$359.99

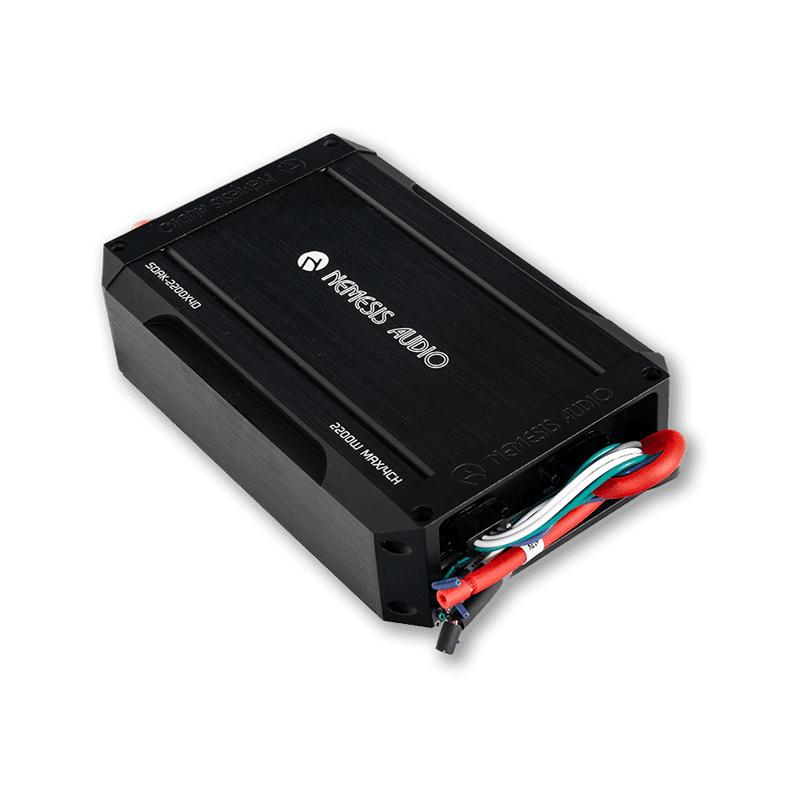

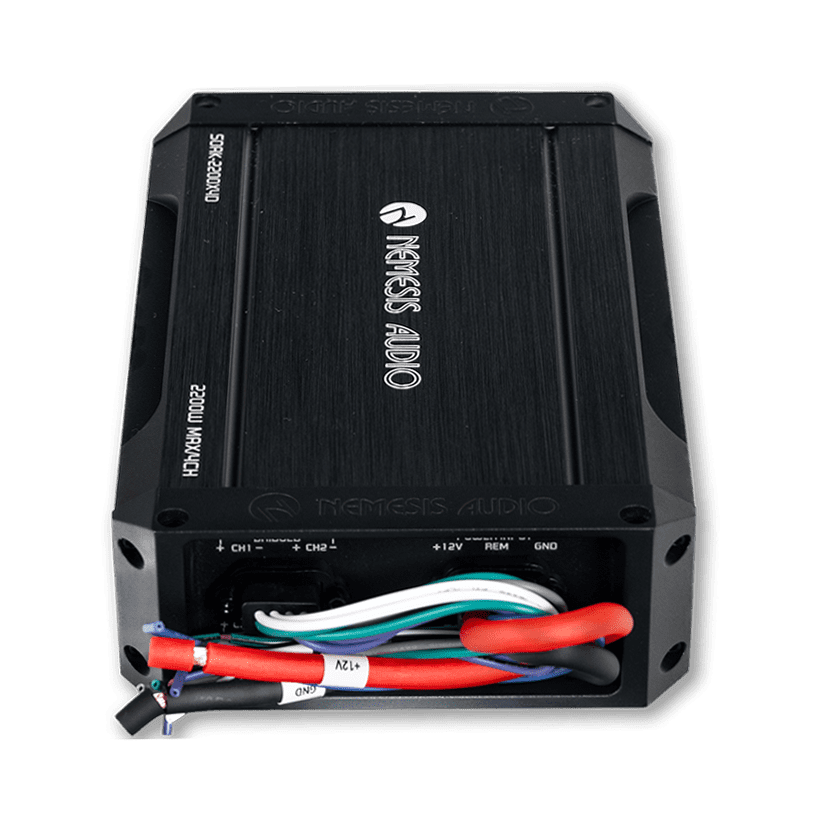

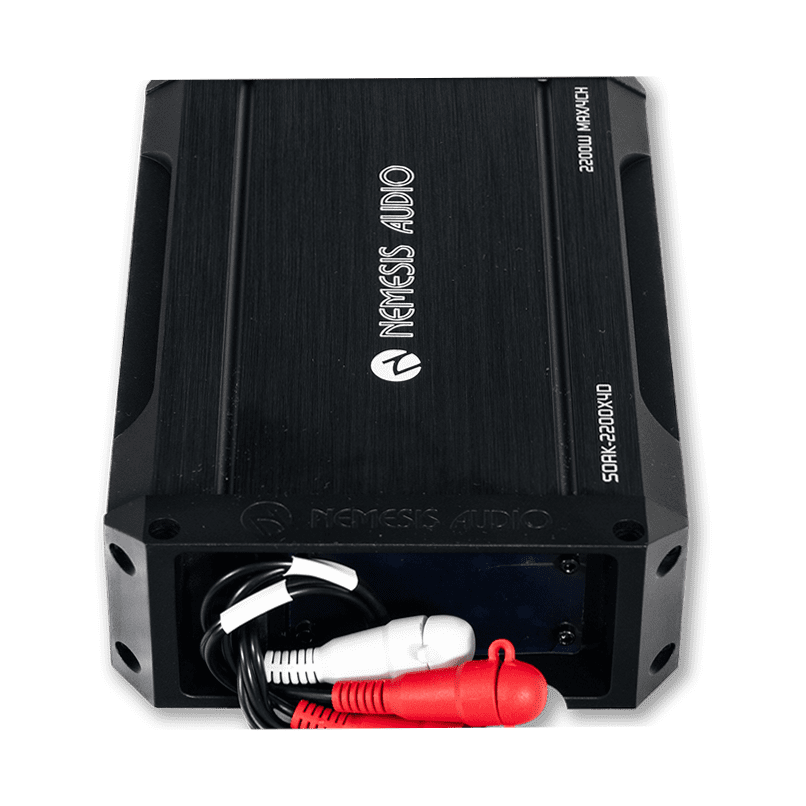

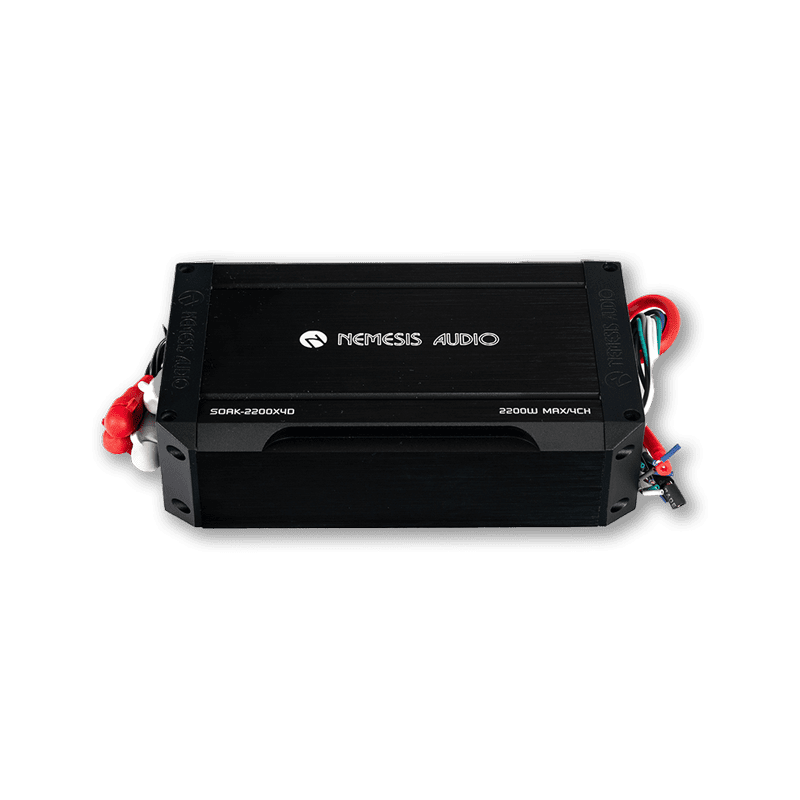

The Nemesis Audio SOAK-2200X4D is a 2200W Max 4-Channel Waterproof Marine Amplifier. Built to endure the elements, this high-output Class D amplifier provides the perfect balance of power and weather resistance for boats, side-by-sides, and off-road vehicles.
Amplifier Owner's Manual
Features
– IRS (International Rectifier) Class-D topology.
– Wireless streaming capabilities (SOAK-1500X4B).
– Compact size for easy installation in many applications.
– Variable full crossover filter: LPF / FULL / HPF.
– Surface-mount component technology.
– Audio precision quality control verification.
– Stable and reliable four-layer PCB trace layout.
– Power and protection LED status indicators.
– Short-circuit, thermal, DC offset, overload, and voltage protection.
– Bass knob controller, except for SOAK-1500X4B, SOAK-2200X4D, SOAK-4500X4D, and SOAK-4000X6D.
– High-gloss CNC-machined engraved Nemesis Audio logo.
Specifications
| MODEL NO. | SOAK-2200X4D |
|---|---|
| Circuit Topology | Full Range Class-D |
| RMS/MAX POWER OUTPUT AT 1 Ohm (14.4V, <1% T.H.D) | N/A |
| RMS/MAX POWER OUTPUT AT 2 Ohm (14.4V, <1% T.H.D) | 300W × 4CH 600W × 4CH |
| RMS/MAX POWER OUTPUT AT 4 Ohm (14.4V, <1% T.H.D) | 190W × 4CH 380W × 4CH |
| RMS/MAX POWER OUTPUT AT 4 Ohm BRIDGED (14.4V, <1% T.H.D) | 600W × 2CH 1200W × 2CH |
| RMS POWER OUTPUT AT 2 Ω BRIDGED | N/A |
| TOTAL HARMONIC DISTORTION | <0.2% |
| S/N RATIO REF 1W AT 4Ω | >90dB |
| GAIN RANGE | 0.38–7.4V |
| PER OCTAVE SLOPES | N/A |
| COOLING FAN | N/A |
| OPERATION FREQUENCY RANGE | 10–30KHz |
| CROSSOVER RANGE | 40–500Hz |
| INPUT MODE | 2CH/4CH |
| BASS BOOST | N/A |
| BASS KNOB | N/A |
| DIMENSIONS (MM) | 214 × 140 × 54 |
| DIMENSIONS (IN) | 8.43 × 5.51 × 2.13 |
| Channels | 4 |
|---|
