NA-K1000X4D
$1,499.99

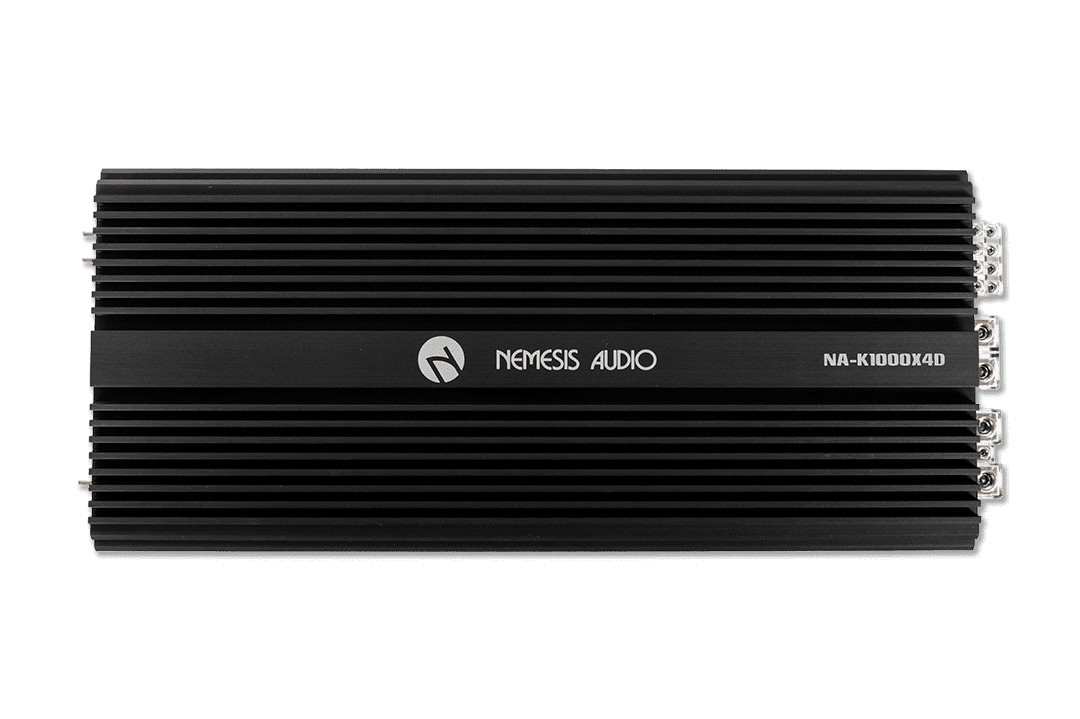

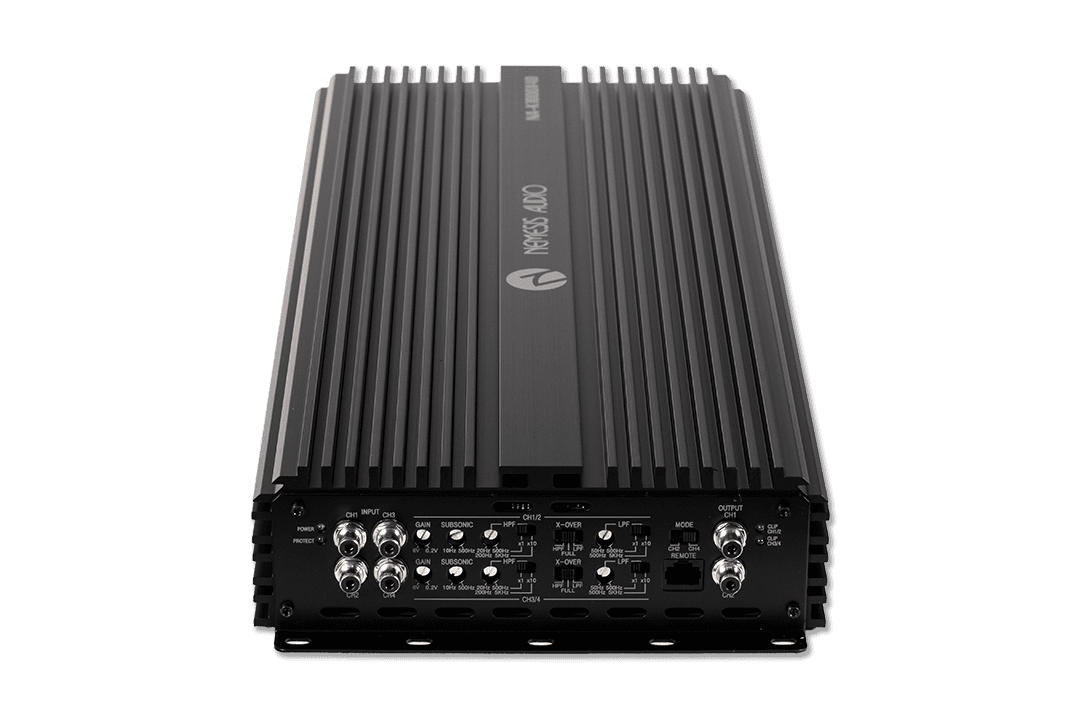

The Nemesis Audio NA-K1000X4D is a high-performance 4-channel Korean amplifier designed to deliver powerful output and reliable performance for advanced car audio systems. It features adjustable crossover controls, a subsonic filter, audiophile-grade Tiffany RCA inputs and outputs, and a remote gain control with a clipping indicator. With support for multiple speaker configurations, 0-gauge power and ground inputs, and built-in protection circuits, this amplifier offers flexibility for demanding audio installations.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Nemesis Audio |
| Model | NA-K1000X4D |
| Amplifier Type | 4-Channel Korean Amplifier |
| Rated Power | 4000W RMS (total at 4Ω, based on listed channel ratings) |
| Frequency Response | 10Hz – 21kHz |
| Working Impedance | 2Ω Stable (stereo) |
| Input Sensitivity | 6V – 0.2V |
| Signal-to-Noise Ratio | 95dB |
| Damping Factor | Greater than 250dB (as printed on packaging) |
| Efficiency | Greater than 88% @ 4Ω, 100Hz |
| Operating Voltage | 10V – 16V |
| Tested Voltage | 14.4V |
| Total Harmonic Distortion (THD) | Less than 1% |
| RCA Connections | Audiophile-grade Tiffany RCA inputs and outputs |

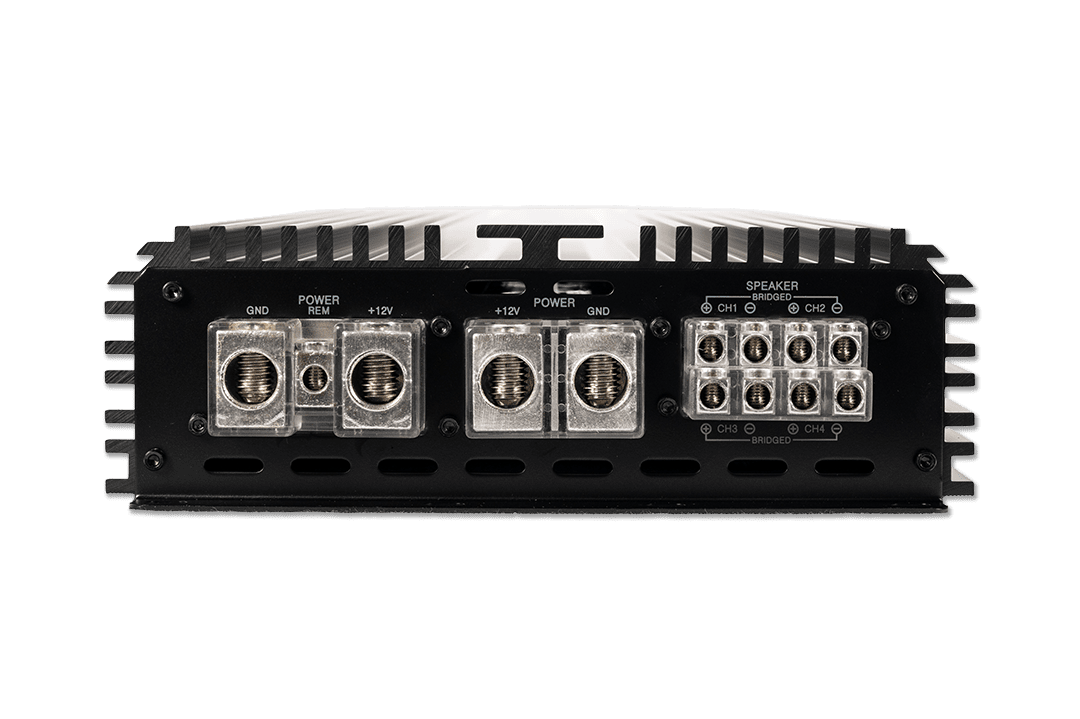

| Power & Ground Inputs | 0 Gauge |
| Remote Gain Control | Yes, with clipping indicator |
| Protection Circuits | Thermal, high/low voltage, short circuit, and DC |
| Dimensions (L × W × H) | 19.68 × 8.66 × 2.71 inches |
Power Output
| Configuration | RMS Power |
|---|---|
| 4Ω – 4 Channel | 1000W × 4 |
| 2Ω – 4 Channel | 1700W × 4 |
| 1Ω – 4 Channel | Not specified |
| 4Ω Mono / Bridged | 3600W × 2 |
Power ratings are transcribed from the product packaging. Confirm the manufacturer’s ratings before publishing, particularly the bridged output and total RMS power.

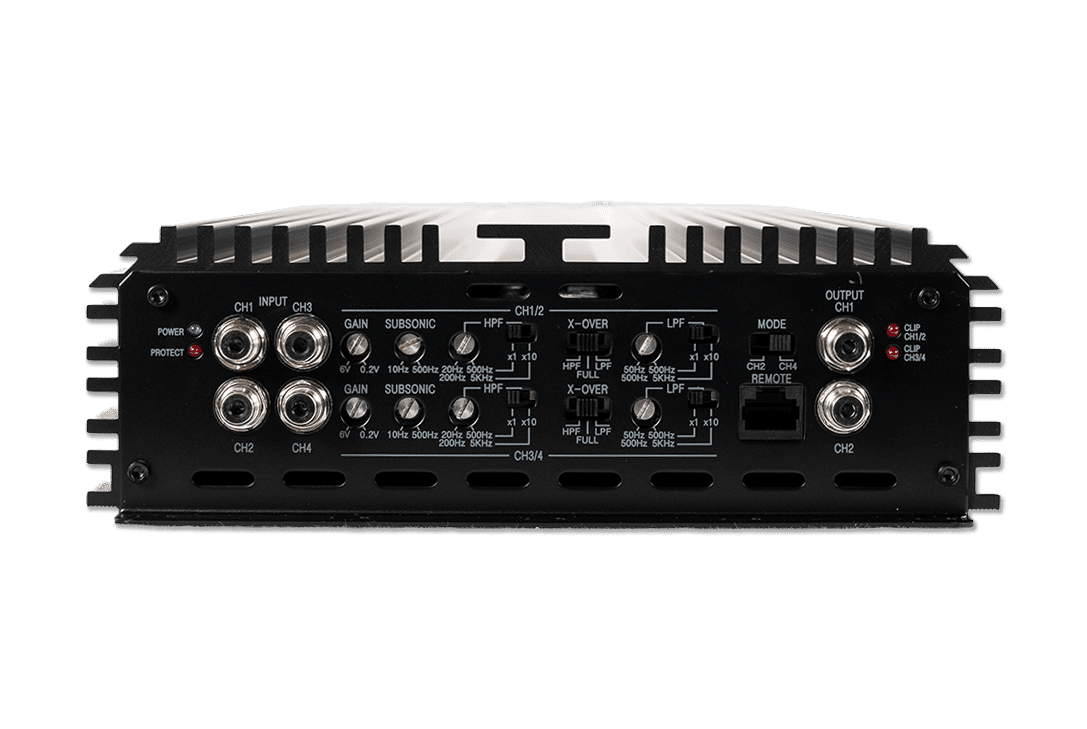

Crossover & Audio Controls
| Feature | Specification |
|---|---|
| High-Pass Filter (HPF) | 20Hz – 500Hz |
| Low-Pass Filter (LPF) | 50Hz – 500Hz |
| HPF Multiplier | ×10 (200Hz – 5kHz) |
| LPF Multiplier | ×10 (500Hz – 5kHz) |
| Subsonic Filter | 10Hz – 500Hz |
| Gain Control | Adjustable |
| Remote Gain Control | Includes clipping indicator |
| RCA Inputs & Outputs | Audiophile-grade Tiffany RCA |
Performance Highlights
-
4-channel Korean amplifier for powerful car audio systems.
-
1000W RMS × 4 at 4Ω as listed on the packaging.
-
1700W RMS × 4 at 2Ω as listed on the packaging.
-
3600W × 2 at 4Ω bridged as listed on the packaging.
-
Wide 10Hz–21kHz frequency response.
-
95dB signal-to-noise ratio.
-
High-efficiency design rated above 88% under the specified test conditions.
-
Adjustable HPF, LPF, and subsonic filter settings.
-
Remote gain control with clipping indicator.
-
Audiophile-grade Tiffany RCA connections.
-
0-gauge power and ground inputs.
-
Built-in protection against thermal faults, voltage irregularities, short circuits, and DC faults.

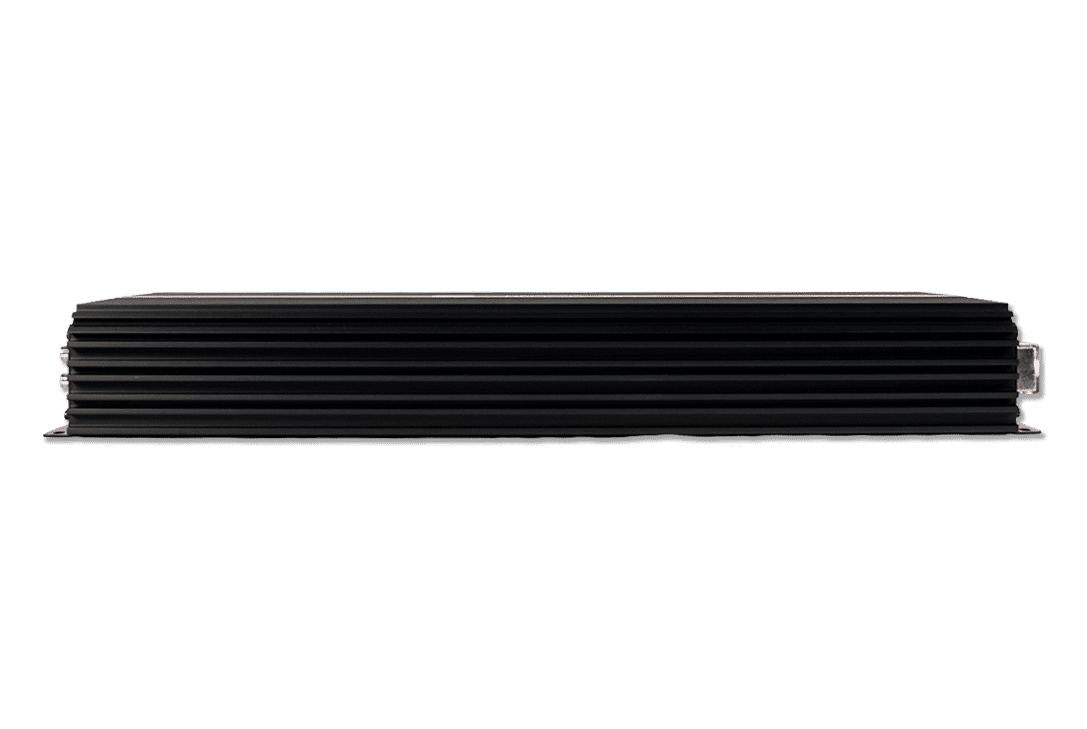

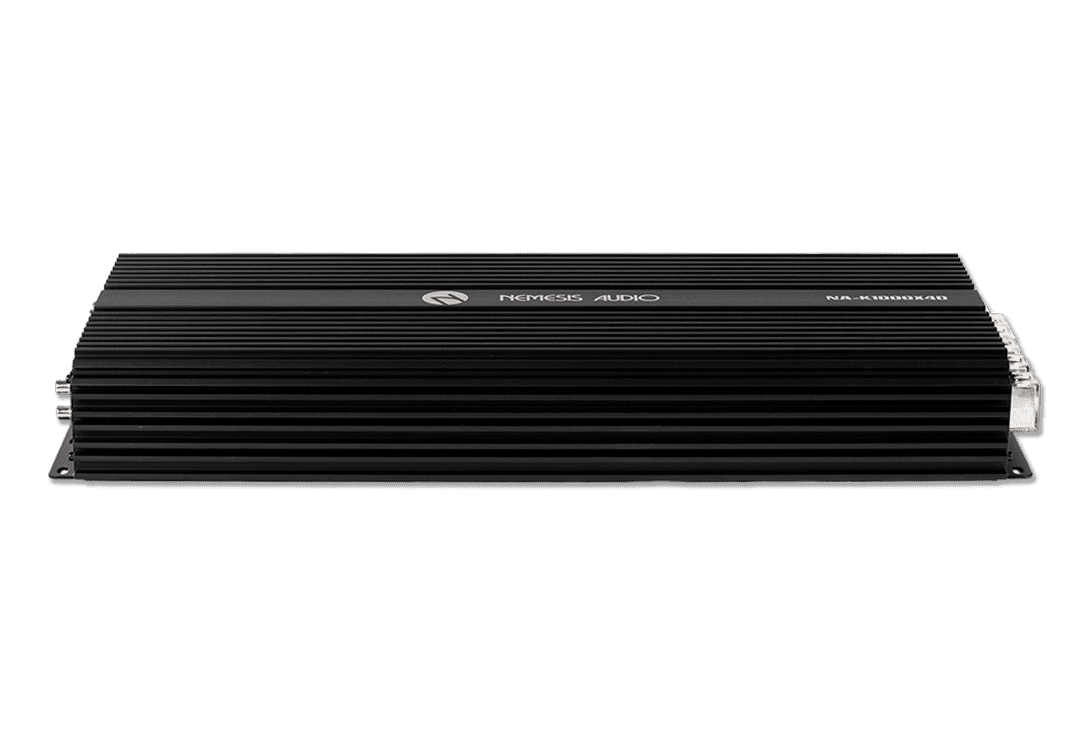

Dimensions
19.68 × 8.66 × 2.71 inches
| Channels | 4 |
|---|
