FR-M2200.4D 4-Channel Amplifier
$499.99
The Nemesis Audio FR-M2200.4D is a 4-channel Class D car audio amplifier designed for powerful, high-quality sound system installations. Featuring a compact black housing, a finned heat-dissipation design, and a digital voltage display, it offers flexible audio configuration options for compatible speakers and subwoofers.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Nemesis Audio |
| Model | FR-M2200.4D |
| Amplifier Type | 4-Channel Full-Range Class D |
| Rated Power | 2200W RMS |
| Working Impedance | 2Ω Stable (based on listed 2Ω output rating) |
| Input Sensitivity | 0.36V – 7.5V |
| Frequency Response | 10Hz – 30kHz |
| Signal-to-Noise Ratio | Greater than 90dB |
| Total Harmonic Distortion (THD) | Less than 0.2% |
| LPF Crossover Range | 40Hz – 500Hz |
| Operating Voltage | Not confirmed |
| Fuse Rating | Not confirmed |
| Dimensions | 9.53 × 5.51 × 2.17 inches |
Power Output
| Configuration | RMS Power |
|---|---|
| 4Ω – 4 Channel | 350W × 4 |
| 2Ω – 4 Channel | 540W × 4 |
| 1Ω – 4 Channel | N/A |
| 4Ω Mono / Bridged | 1080W × 2 |

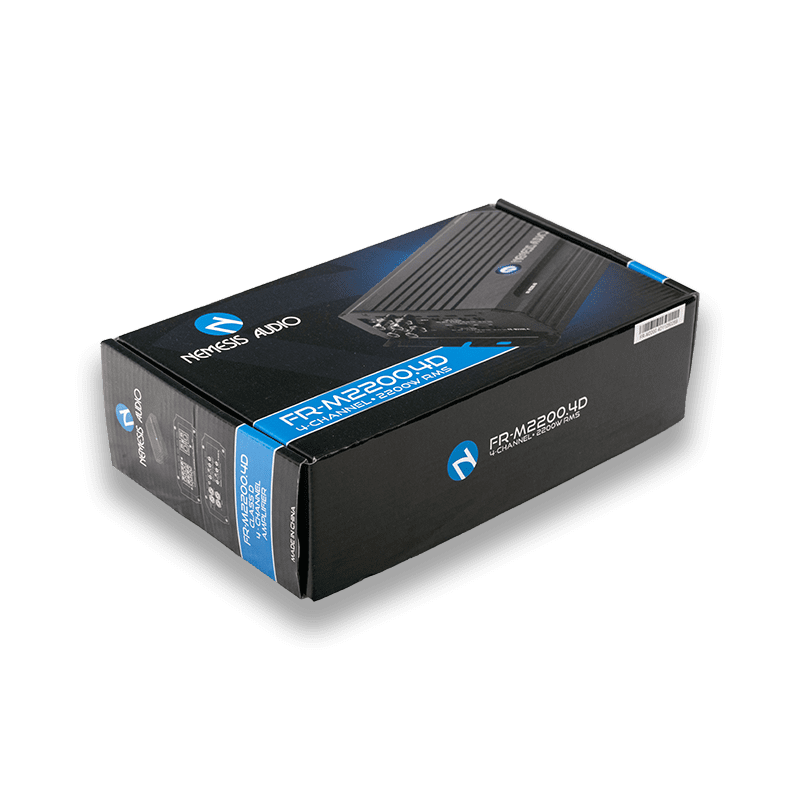

The manufacturer’s packaging lists 350W × 4 at 4Ω, 540W × 4 at 2Ω, and 1080W × 2 at 4Ω bridged, measured at 14.4V with less than 1% THD.

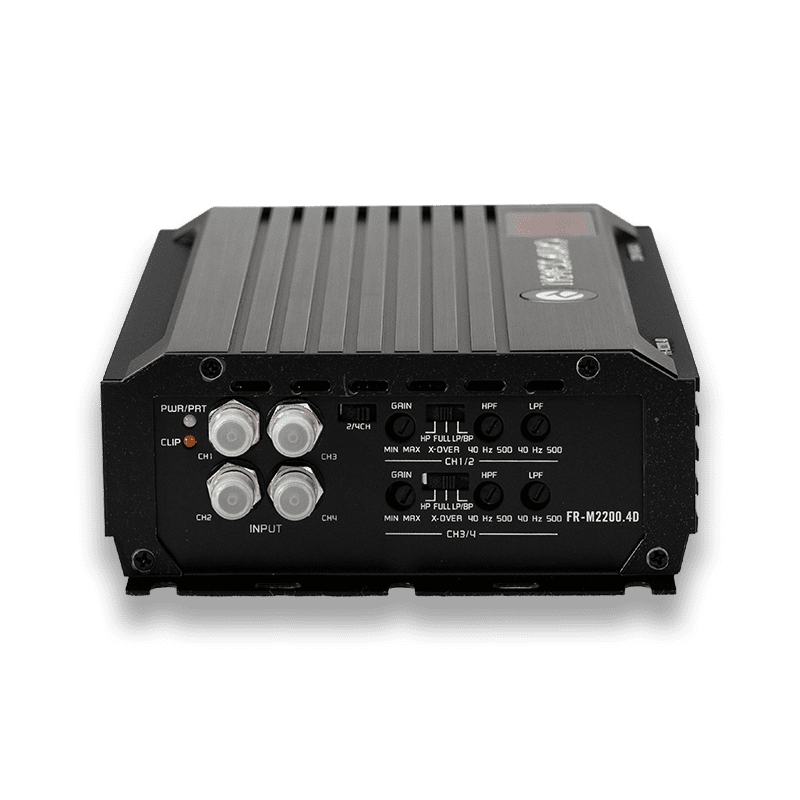

Crossover & Audio Controls
| Feature | Specification |
|---|
Low-Pass Filter (LPF) 40Hz – 500Hz
| Input Sensitivity | 0.36V – 7.5V |
| Frequency Response | 10Hz – 30kHz |
Performance Highlights
-
2200W RMS advertised 4-channel amplifier
-
Class D amplifier design
-
350W RMS × 4 @ 4Ω
-
540W RMS × 4 @ 2Ω
-
1080W × 2 @ 4Ω bridged
-
10Hz–30kHz frequency response
-
Greater than 90dB signal-to-noise ratio
-
Less than 0.2% THD
-
Adjustable low-pass crossover from 40Hz–500Hz
-

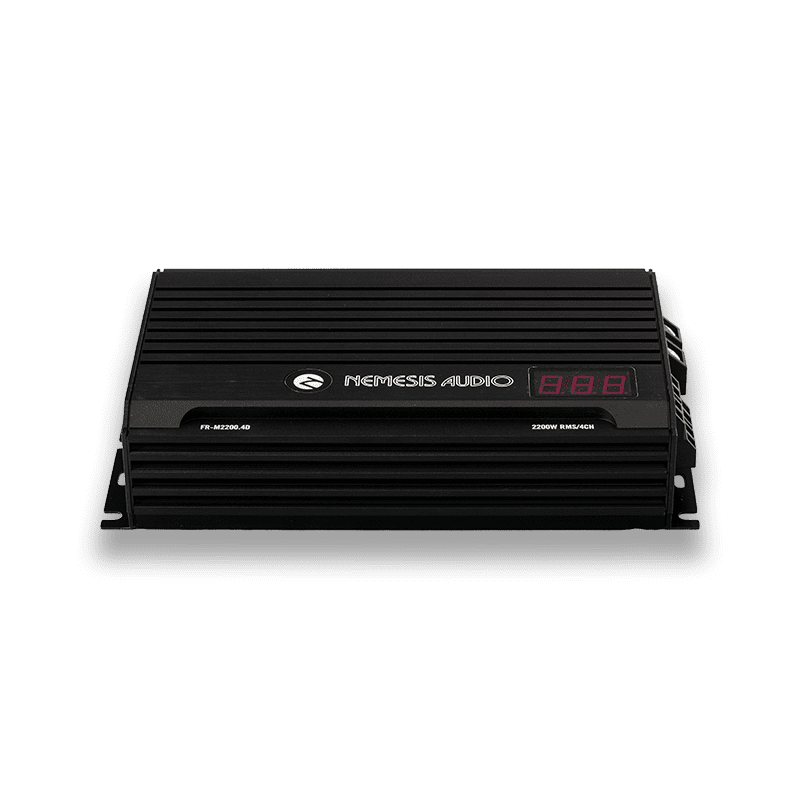

Digital voltage display
-

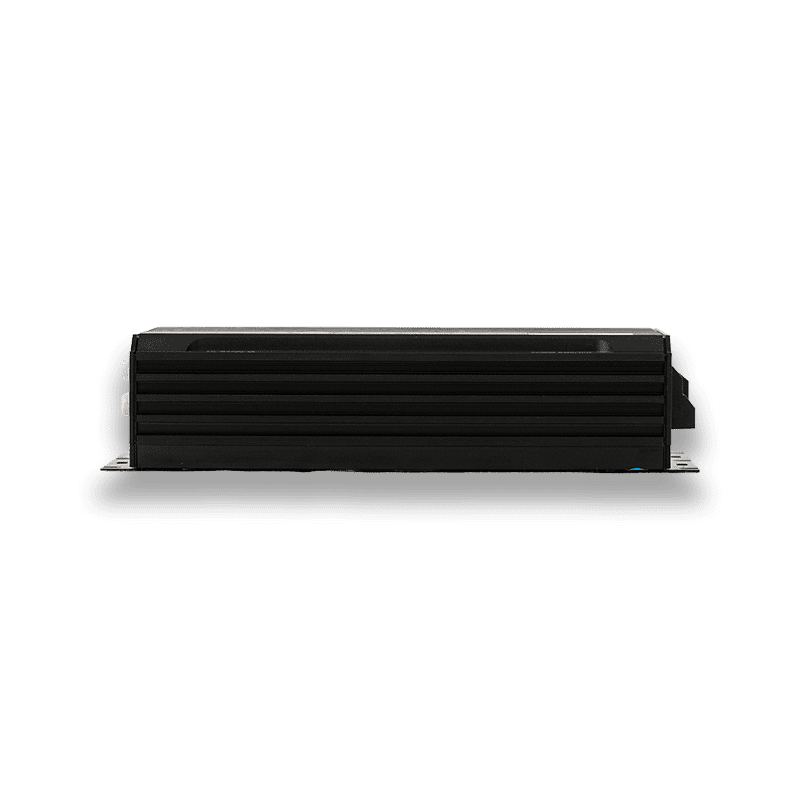

Compact design with finned housing for heat dissipation
Dimensions
9.53 × 5.51 × 2.17 inches
