NA-BZ200X4D
$249.99
The Nemesis Audio NA-BZ200X4D is a compact 4-channel Full-Range Class D amplifier designed for efficient, powerful multi-speaker audio systems. With 2Ω stable operation, flexible input sensitivity, adjustable high/low-pass filtering, and bridged output capability, it provides versatile installation options for car audio applications. The supplied box lists the detailed electrical specifications below.
Amplifier Owner's Manual
Key Specifications
| Specification | Details |
|---|---|
| Model | NA-BZ200X4D |
| Amplifier Type | Full-Range Class D |
| Channels | 4 |
| Rated Power | 800W RMS / 4CH |
| Working Impedance | 2Ω Stable |
| Input Sensitivity | 0.2V–12V |
| Frequency Response | 20Hz–20kHz |
| Signal-to-Noise Ratio | 85dB |
| THD @ 4Ω | 0.4% |
| Operating Voltage | 9V–16V |
| Fuse Rating | 60A |
Power Output
| Load | RMS Power |
|---|---|
| 4Ω | 140W × 4CH |
| 2Ω | 230W × 4CH |
| 4Ω Mono / Bridged | 460W × 2CH |
Crossover & Audio Controls
| Feature | Specification |
|---|---|
| High-Pass Filter (HPF) | 90Hz |
| Low-Pass Filter (LPF) | 90Hz |
| Subsonic Filter | N/A |
| Bass Boost | 12dB |
| Input Sensitivity | 0.2V–12V |
| Frequency Response | 20Hz–20kHz |

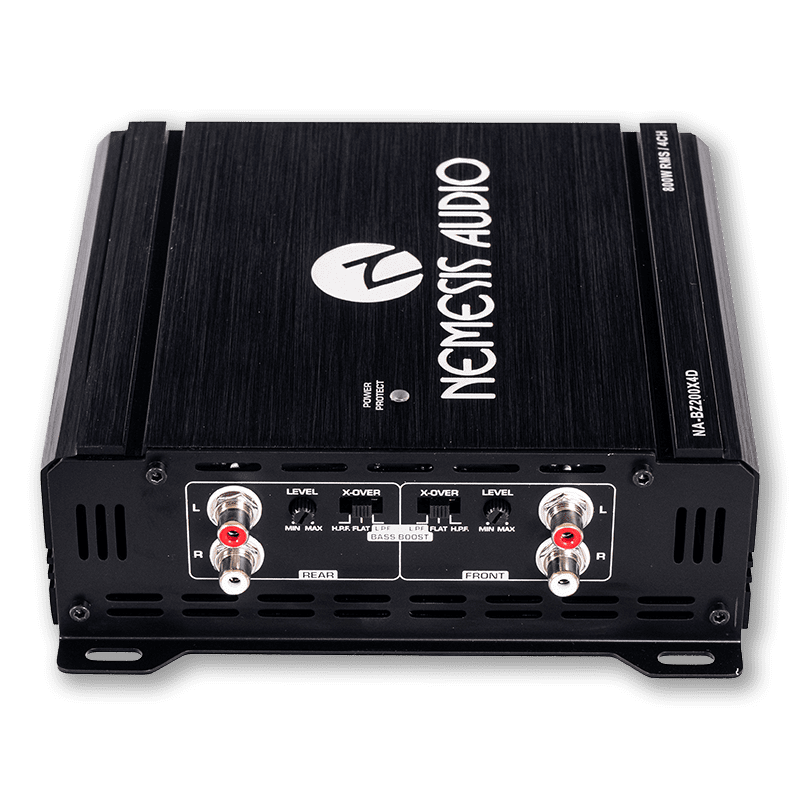

The amplifier’s control panel also provides front/rear RCA inputs, level controls, and crossover selection controls for flexible system configuration.
Product Highlights
- 4-channel Full-Range Class D design
- 800W RMS / 4CH amplifier rating shown on the product
- 2Ω stable operation
- 140W × 4 RMS @ 4Ω
- 230W × 4 RMS @ 2Ω
- 460W × 2 RMS @ 4Ω bridged
- 20Hz–20kHz frequency response
- 0.2V–12V input sensitivity
- 12dB bass boost
- 60A fuse rating
- Compact chassis for space-efficient installations
Dimensions
6.69 × 7.28 × 2.32 inches
